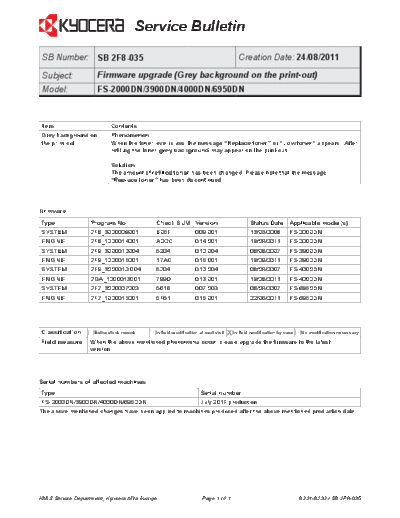

Image preview - the first page of the document



>> Download 2F8-035 documenatation <<

Text preview - extract from the document

                                      Service Bulletin
 SB Number: SB 2F8-035                                                           Creation Date: 24/08/2011

 Subject:            Firmware upgrade (Grey background on the print-out)
 Model:              FS-2000DN/3900DN/4000DN/6950DN



Item                       Contents
Grey background on         Phenomenon
the print-out.             When the toner level is low, the message "Replace toner" or "Low toner" appears. After
                           refilling the toner, grey background may appear on the print-out.

                           Solution
                           The amount of refilled toner has been changed. Please note that the message
                           "Replace toner" has been discontinued.




Firmware
Type               Program No.             Check SUM Version                       Status Date Applicable model(s)
SYSTEM             2F8_3000009001          E05F                009.001             13/03/2008   FS-2000DN
ENGINE             2F8_1000014001          AD2C                014.001             19/08/2011   FS-2000DN
SYSTEM             2F9_3000010004          5204                010.004             08/08/2007   FS-3900DN
ENGINE             2F9_1000015001          17AC                015.001             19/08/2011   FS-3900DN
SYSTEM             2F9_3000010.004         5204                010.004             08/08/2007   FS-4000DN
ENGINE             2GA_1000013001          799D                013.001             19/08/2011   FS-4000DN
SYSTEM             2F7_3000007003          5616                007.003             08/08/2007   FS-6950DN
ENGINE             2F7_1000015001          5F61                015.001             22/06/2011   FS-6950DN




Classification      Entire stock rework                        X In-field modification by case No modification necessary
                                           In-field modification at next visit
Field measure     When the above mentioned phenomena occur, please upgrade the firmware to the latest
                  version.




Serial numbers of affected machines
Type                                                              Serial number
 FS-2000DN/3900DN/4000DN/6950DN                       July 2011 production.
The above mentioned changes have been applied to machines produced after the above mentioned production date.




KMIS Service Department, Kyocera Mita Europe                      Page 1 of 1                     B231-B232 / SB 2F8-035
