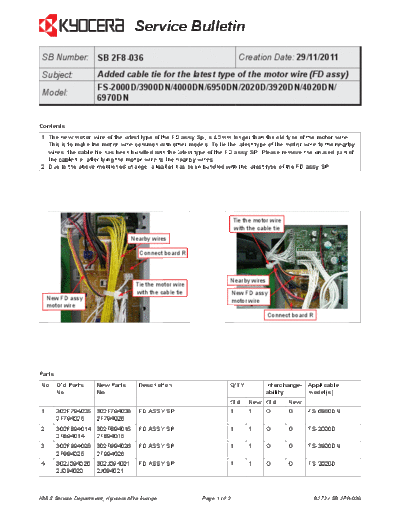

Image preview - the first page of the document
>> Download 2F8-036 documenatation <<
Text preview - extract from the document
Service Bulletin
SB Number: SB 2F8-036 Creation Date: 29/11/2011
Subject: Added cable tie for the latest type of the motor wire (FD assy)
FS-2000D/3900DN/4000DN/6950DN/2020D/3920DN/4020DN/
Model:
6970DN
Contents
1. The new motor wire of the latest type of the FD assy Sp, is 40mm longer than the old type of the motor wire.
This is to make the motor wire common with other models. To tie the latest type of the motor wire to the nearby
wires, the cable tie has been bundled with the latest type of the FD assy SP. Please remove the unused part of
the cable tie, after tying the motor wire to the nearby wires.
2. Due to the above mentioned change, a leaflet has been bundled with the latest type of the FD assy SP.
Tie the motor wire
with the cable tie
Nearby wires
Connect board R
Nearby wires
Tie the motor wire
with the cable tie New FD assy
New FD assy motor wire
motor wire
Connect board R
Parts
No. Old Parts New Parts Description Q'TY Interchange- Applicable
No. No. ability model(s)
Old New Old New
1 302F794025 302F794026 FD ASSY SP 1 1 O O FS-6950DN
2F794025 2F794026
2 302F894014 302F894015 FD ASSY SP 1 1 O O FS-2000D
2F894014 2F894015
3 302F994025 302F994026 FD ASSY SP 1 1 O O FS-3900DN
2F994025 2F994026
4 302J094020 302J094021 FD ASSY SP 1 1 O O FS-2020D
2J094020 2J094021
KMIS Service Department, Kyocera Mita Europe Page of 2 B272 / SB 2F8-036
Service Bulletin
5 302J194010 302J194011 FD ASSY SP 1 1 O O FS-3920DN/
2J194010 2J194011 4020DN
6 302J594072 302J594073 FD ASSY SP 1 1 O O FS-6970DN
2J594072 2J594073
7 302F944130 302F944131 +MOTOR EJECT 1 1 O O FS- 2000D/
2F944130 2F944131 3900DN/4000DN/
8 ---------- 7YZM420003 +ACCESS BAND - 1 - O 6950DN/2020D/
++H01 3920DN/4020DN/
YZ052580 6970DN
Current FD assy (Latest part in the Parts table above) Plan from now on
FD assy Machine production FD assy Machine production
A4 printer Cable tie bundled Cable tie applied Added leaflet No change
(Cable tie remains)
A3 printer Cable tie bundled Cable tie applied Cable tie has been Cable tie has been
(FS-6950DN/ applied to the wire relocated (The same as
6970DN) the FD assy)
*1. The leaflet shows where to applie the cable tie
The FD assy is shipped, with the wire wrapped
by the cable tie. When installing this part, it is no
longer necessary to tie the motor wire to the
nearby wires.
KMIS Service Department, Kyocera Mita Europe Page 2 of 2 B272 / SB 2F8-036
