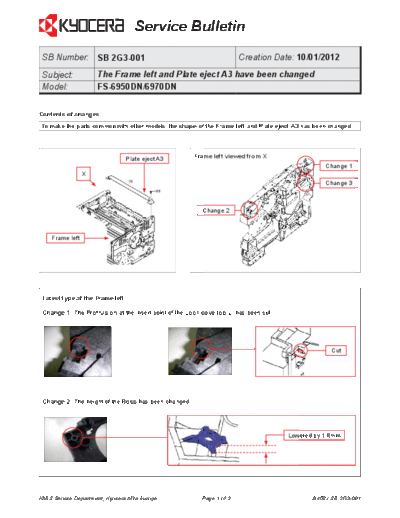

Image preview - the first page of the document
>> Download 2G3-001 documenatation <<
Text preview - extract from the document
Service Bulletin
SB Number: SB 2G3-001 Creation Date: 10/01/2012
Subject: The Frame left and Plate eject A3 have been changed
Model: FS-6950DN/6970DN
Contents of changes
To make the parts common with other models, the shape of the Frame left and Plate eject A3 has been changed.
Plate eject A3 Frame left viewed from X
Change 1
X
Change 3
Change 2
Frame left
Latest type of the Frame left
Change 1: The Protrusion at the insert point of the Lock cove top L, has been cut.
Cut
Change 2: The height of the Boss has been changed.
Lowered by 1.8mm
KMIS Service Department, Kyocera Mita Europe Page 1 of 2 B459 / SB 2G3-001
Service Bulletin
Change 3: The Section where the Lever EF has been attached, has been changed.
: Protrusion has been extended by 1.5mm.
: The corners have been changed from
round to chamfer shape.
Latest type of the Plate eject
Change 1: The chamfer shape has been applied.
Old condition New condition
Chamfer shape has been applied
Parts
No. Old Parts New Parts Description Q'TY Interchange-
No. No. ability
Old New Old New
1 302F902011 302F902511 FRAME LEFT 1 1 O X
2F902011 2F902511
2 302F728100 302F728101 PLATE EJECT A3 1 1 X O
2F728100 2F728101
Classification Entire stock rework X In-field modification by case No modification necessary
In-field modification at next visit
Field measure When replacing the Frame left and Plate eject A3, please use the latest type. Both the old and
new type of the Plate eject A3 can be used in combination with the old type of the Frame left.
KMIS Service Department, Kyocera Mita Europe Page 2 of 2 B459 / SB 2G3-001
