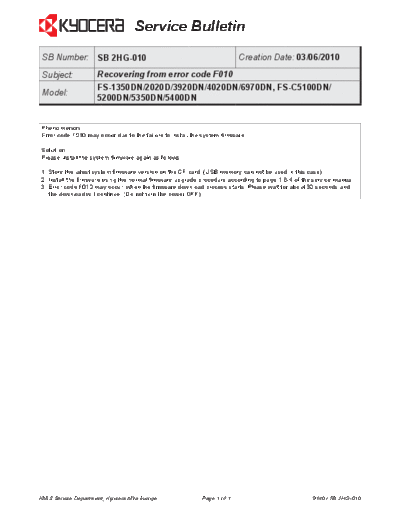

Image preview - the first page of the document



>> Download 2HG-010 documenatation <<

Text preview - extract from the document

                                   Service Bulletin
 SB Number: SB 2HG-010                                                   Creation Date: 03/06/2010
 Subject:            Recovering from error code F010
                     FS-1350DN/2020D/3920DN/4020DN/6970DN, FS-C5100DN/
 Model:
                     5200DN/5350DN/5400DN


Phenomenon
Error code F010 may occur due to the failure to install the system firmware.

Solution
Please install the system firmware again as follows:

1. Store the latest system firmware version on the CF card. (USB memory can not be used in this case)
2. Install the firmware using the normal firmware upgrade procedure according to page 1-6-4 of the service manual.
3. Error code F010 may occur, when the firmware download process starts. Please wait for about 30 seconds and
   the download will continue. (Do not turn the power OFF)




KMIS Service Department, Kyocera Mita Europe               Page 1 of 1                            9140 / SB 2HG-010
