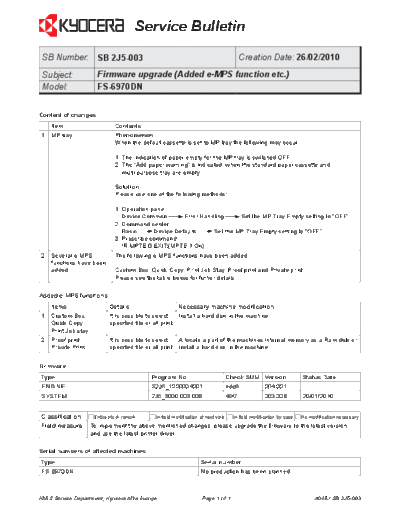

Image preview - the first page of the document



>> Download 2J5-003 documenatation <<

Text preview - extract from the document

                                        Service Bulletin
 SB Number: SB 2J5-003                                                                      Creation Date: 26/02/2010
 Subject:              Firmware upgrade (Added e-MPS function etc.)
 Model:                FS-6970DN


Content of changes
    Item                       Contents
1   MP tray                    Phenomenon
                               When the default cassette is set to MP tray the following may occur:

                               1. The indication of paper empty for the MP tray is switched OFF.
                               2. The "Add paper warning" is indicated, when the standard paper cassette and
                                  multi purpose tray are empty.

                               Solution
                               Please use one of the following methods:

                               1. Operation panel:
                                  Device Common        Error Handling     Set the MP Tray Empty setting to "OFF"
                               2. Command center:
                                  Basic      Device Defaults     Set the MP Tray Empty setting to "OFF"
                               3. Prescribe command:
                                  !R!MPTE 0;EXIT;(MPTE 1;On)
2   Several e-MPS              The following e-MPS functions have been added:
    functions have been
    added.                     Custom Box, Quick Copy, Print Job Stay, Proof print and Private print.
                               Please see the table below for furher details.

Added e-MPS functions
    Items                    Details                      Necessary machine modification
1   Custom Box               It is possible to select     Install a hard disk in the machine.
    Quick Copy               specified file or all print.
    Print Job stay
2   Proof print              It is possible to select     Allocate a part of the machines internal memory as a Ram disk or
    Private Print            specified file or all print. install a hard disk in the machine.


Firmware
Type                                         Program No.                             Check SUM Version                 Status Date
ENGINE                                       S2J5_1000004001                         edc6             004.001
SYSTEM                                       2J5_3000.003.008                        45f7             003.008          20/01/2010


Classification        Entire stock rework      In-field modification at next visit     In-field modification by case   No modification necessary
Field measure        To implement the above mentioned changes, please upgrade the firmware to the latest version
                     and use the latest printer driver.

Serial numbers of affected machines
Type                                                                  Serial number
FS-6970DN                                                             No production has been planned



KMIS Service Department, Kyocera Mita Europe                          Page  of                                              A045 / SB 2J5-003
