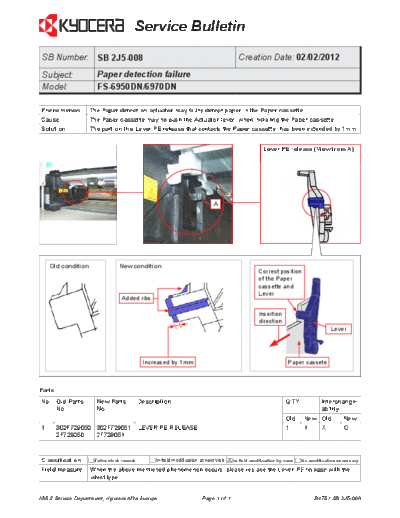

Service Bulletin
SB Number: SB 2J5-008 Creation Date: 02/02/2012
Subject: Paper detection failure
Model: FS-6950DN/6970DN
Phenomenon The Paper detection actuator may fail to detect paper in the Paper cassette.
Cause The Paper cassette may no push the Actuator lever, when installing the Paper cassette.
Solution The part on the Lever PE release that contacts the Paper cassette, has been extended by 1mm.
Lever PE release (View from A)
A
Old condition New condition
Correct position
of the Paper
cassette and
Lever
Added ribs
Insertion
direction
Lever
Increased by 1mm Paper cassete
Parts
No. Old Parts New Parts Description Q'TY Interchange-
No. No. ability
Old New Old New
1 302F729050 302F729051 LEVER PE RELEASE 1 1 X O
2F729050 2F729051
Classification Entire stock rework X In-field modification by case No modification necessary
In-field modification at next visit
Field measure When the above mentioned phenomenon occurs, please replace the Lever PE release with the
latest type.
KMIS Service Department, Kyocera Mita Europe Page of B478 / SB 2J5-008
