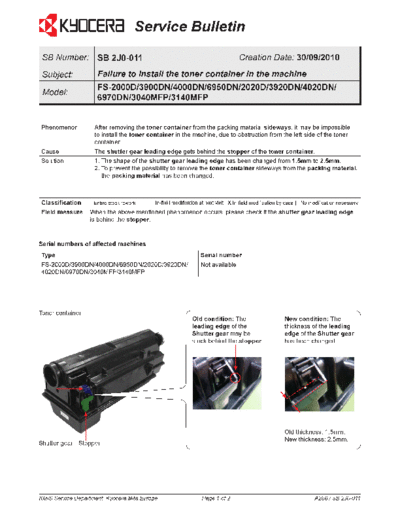

Image preview - the first page of the document
>> Download 2J0-011 documenatation <<
Text preview - extract from the document
Service Bulletin
SB Number: SB 2J0-011 Creation Date: 30/09/2010
Subject: Failure to install the toner container in the machine
FS-2000D/3900DN/4000DN/6950DN/2020D/3920DN/4020DN/
Model:
6970DN/3040MFP/3140MFP
Phenomenon After removing the toner container from the packing material sideways, it may be impossible
to install the toner container in the machine, due to obstruction from the left side of the toner
container.
Cause The shutter gear leading edge gets behind the stopper of the toner container.
Solution 1. The shape of the shutter gear leading edge has been changed from 1.5mm to 2.5mm.
2. To prevent the possibility to remove the toner container sideways from the packing material,
the packing material has been changed.
Classification Entire stock rework X In-field modification by case No modification necessary
In-field modification at next visit
Field measure When the above mentioned phenomenon occurs, please check if the shutter gear leading edge
is behind the stopper.
Serial numbers of affected machines
Type Serial number
FS-2000D/3900DN/4000DN/6950DN/2020D/3920DN/ Not available
4020DN/6970DN/3040MFP/3140MFP
Toner container.
Old condition: The New condition: The
leading edge of the thickness of the leading
Shutter gear may be edge of the Shutter gear
stuck behind the stopper. has been changed.
Old thickness: 1.5mm.
New thickness: 2.5mm.
Shutter gear Stopper
KMIS Service Department, Kyocera Mita Europe Page 1 of 2 A266 / SB 2J0-011
Service Bulletin
Correct: Open the left and right flaps on top of the
packing material and remove the toner container.
Wrong: When removing the toner container
sideways, the above mentioned phenomenon
may occur.
Old condition: The toner container can New condition: The toner container can
be removed sideways. not be removed sideways, due to the
added part.
Shutter gear and stopper.
KMIS Service Department, Kyocera Mita Europe Page 2 of 2 A266 / SB 2J0-011
