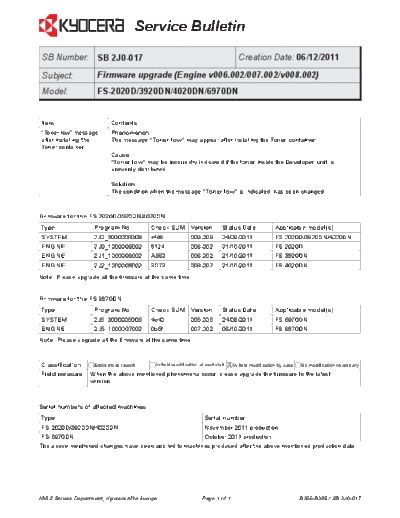

Image preview - the first page of the document



>> Download 2J0-017 documenatation <<

Text preview - extract from the document

                                      Service Bulletin
 SB Number: SB 2J0-017                                                            Creation Date: 06/12/2011

 Subject:            Firmware upgrade (Engine v006.002/007.002/v008.002)
 Model:              FS-2020D/3920DN/4020DN/6970DN


Item                       Contents
"Toner low" message        Phenomenon
after installing the       The message "Toner low" may appear after installing the Toner container.
Toner container.
                           Cause
                           "Toner low" may be incorrectly indicated if the toner inside the Developer unit is
                           unevenly distributed.

                           Solution
                           The condition when the message "Toner low" is indicated, has been changed.



Firmware for the FS-2020D/3920DN/4020DN
Type                Program No.           Check SUM Version                  Status Date   Applicable model(s)
SYSTEM              2J0_3000008009        efd8               008.009         24/08/2011    FS-2020D/3920DN/4020DN
ENGINE              2J0_1000006002        9124               006.002         21/10/2011    FS-2020D
ENGINE              2J1_1000006002        A563               006.002         21/10/2011    FS-3920DN
ENGINE              2J2_1000008002        3D73               008.002         21/10/2011    FS-4020DN
Note: Please upgrade all the firmware at the same time.


Firmware for the FS-6970DN
Type                Program No.           Check SUM Version                  Status Date   Applicable model(s)
SYSTEM              2J5_3000005005        4c40               005.005         24/08/2011    FS-6970DN
ENGINE              2J5_1000007002        0b5f               007.002         06/10/2011    FS-6970DN
Note: Please upgrade all the firmware at the same time.


Classification      Entire stock rework                        X In-field modification by case No modification necessary
                                           In-field modification at next visit
Field measure     When the above mentioned phenomena occur, please upgrade the firmware to the latest
                  version.



Serial numbers of affected machines
Type                                                                Serial number
FS-2020D/3920DN/4020DN                                              November 2011 production.
 FS-6970DN                                             October 2011 production.
The above mentioned changes have been applied to machines produced after the above mentioned production date.




KMIS Service Department, Kyocera Mita Europe                      Page 1 of 1                     B366-B398 / SB 2J0-017
