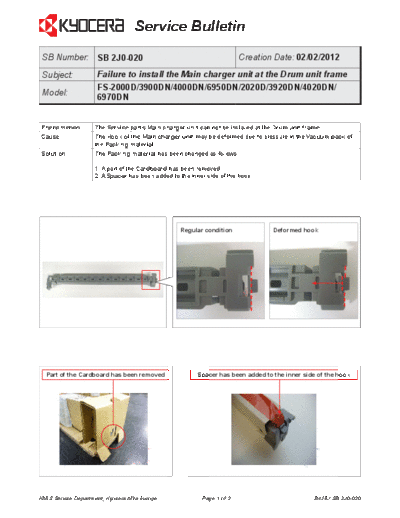

                                   Service Bulletin
 SB Number: SB 2J0-020                                                  Creation Date: 02/02/2012
 Subject:            Failure to install the Main charger unit at the Drum unit frame
                     FS-2000D/3900DN/4000DN/6950DN/2020D/3920DN/4020DN/
 Model:
                     6970DN


Phenomenon          The Service parts Main charger unit can not be installed at the Drum unit frame.
Cause               The Hook of the Main charger unit may be deformed due to pressure in the Vacuum pack of
                    the Packing material.
Solution            The Packing material has been changed as follows:

                    1. A part of the Cardboard has been removed.
                    2. A Spacer has been added to the inner side of the hook




                                                  Regular condition                Deformed hook




  Part of the Cardboard has been removed                Spacer has been added to the inner side of the hook




KMIS Service Department, Kyocera Mita Europe              Page  of 2                             B425 / SB 2J0-020
                                       Service Bulletin

Classification       Entire stock rework                      X In-field modification by case No modification necessary
                                                In-field modification at next visit
Field measure     When the above mentioned phenomenon occurs, please replace the Main charger unit with the
                  latest type.



Parts
No. Old Parts         New Parts            Description                           Q'TY       Interchange- Applicable model(s)
    No.               No.                                                                   ability
                                                                                 Old    New Old    New
1       302F793055 302F793056              MC-440                                1      1   X      O     FS-6950DN
        2F793055   2F793056
2       302F993087 302F993088              MC-310                                1      1   X      O     FS-2000D/3900DN/
        2F993087   2F993088                                                                              4000DN
3       302J093092    302J093093           MC-320                                1      1   X      O     FS-2020D/3920DN/
        2J093092      2J093093                                                                           4020DN
4       302J593061    302J593062           MC-450                                1      1   X      O     FS-6970DN
        2J593061      2J593062




KMIS Service Department, Kyocera Mita Europe                           Page 2 of 2                            B425 / SB 2J0-020
