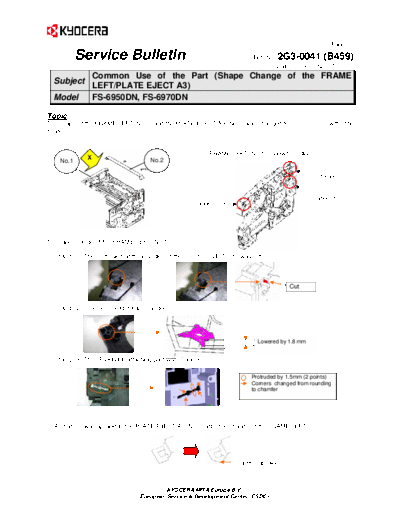

Image preview - the first page of the document
>> Download SB-2G3-0041-B459 documenatation <<
Text preview - extract from the document
(Page.1/2)
Service Bulletin Ref. No.2G3-0041 (B459)
December 27, 2011
Common Use of the Part (Shape Change of the FRAME
Subject
LEFT/PLATE EJECT A3)
Model FS-6950DN, FS-6970DN
Topic
The shape of the FRAME LEFT (No.1) and the PLATE EJECT A3 (No.2) was changed for common use with other
models.
No.1 X No.2
Change1
Change 3
Change 2
1) Shape change of the FRAME LEFT (No.1)
Change 1) The protrusion at the insertion of the LOCK COVE TOP L was cut.
Cut
Change 2) The boss height was changed.
Lowered by 1.8 mm
Change 3) The LEVER EF attaching part was changed.
Protruded by 1.5mm (2 points)
Corners changed from rounding
to chamfer
2) A chamfer was applied to the PLATE EJECT A3 (No.2) after the change of the FRAME LEFT.
Chamfer applied
KYOCERA MITA Europe B.V.
European Service & Development Center (ESDC)
(Page.2/2)
Service Bulletin Ref. No.2G3-0041 (B459)
December 27, 2011
Com pati-
Old Part New Part Q'ty bi lity
No. No. No. Description Remarks
Old New Old New
302F902011 302F902511
1 FRAME LEFT 1 1 O X
2F902011 2F902511
302F728100 302F728101
2 PLATE EJECT A3 1 1 X O
2F728100 2F728101
KMC's Classification Entire Stock Rework In-Field modification at next visit
In-Field modification by case No modification necessary
Field Measure:
Please use the new part (No.2) with the new part (No.1) when replacing the parts. Either of the old or the new
type part (No.2) may be applied with the old type part (No1).
Serial Nos. of the Affected Machines: After using up the old stock
KYOCERA MITA Europe B.V.
European Service & Development Center (ESDC)
