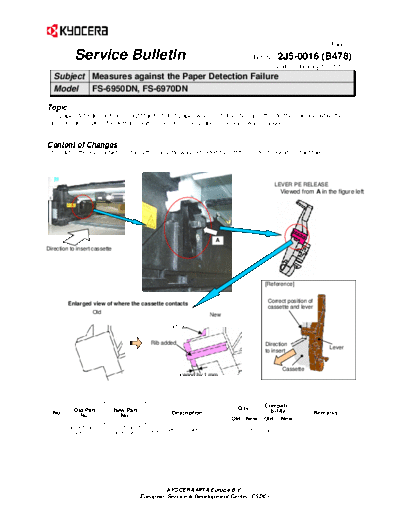

Image preview - the first page of the document
>> Download SB-2J5-0016-B478 documenatation <<
Text preview - extract from the document
(Page.1/2)
Service Bulletin Ref. No.2J5-0016 (B478)
January 10, 2012
Subject Measures against the Paper Detection Failure
Model FS-6950DN, FS-6970DN
Topic
The paper detection actuator might fail to detect paper when installing the cassette into the machine while the
cassette fails to push the actuator lever. Therefore, the shape of the lever was changed.
Content of Changes
The part of the lever which contacts the cassette was extended by 1 mm in order to avoid contact failure.
LEVER PE RELEASE
Viewed from A in the figure left
A
Direction to insert cassette
[Reference]
Correct position of
Enlarged view of where the cassette contacts
cassette and lever
Old
New
Rib added
Rib added Direction
Lever
to insert
Cassette
Thickened by 1 mm
Q'ty Com pati-
Old Part New Part bi lity
No. No. No. Description Remarks
Old New Old New
302F729050 302F729051
1 LEVER PE RELEASE 1 1 X O
2F729050 2F729051
KYOCERA MITA Europe B.V.
European Service & Development Center (ESDC)
(Page.2/2)
Service Bulletin Ref. No. 2J5-0016 (B478)
January 10, 2012
KMC's Classification Entire Stock Rework In-Field modification at next visit
In-Field modification by case No modification necessary
Field Measure:
Please replace the part (No.1) with the new one when the phenomenon described above arises.
Serial Nos. of the Affected Machines: To be informed later
KYOCERA MITA Europe B.V.
European Service & Development Center (ESDC)
