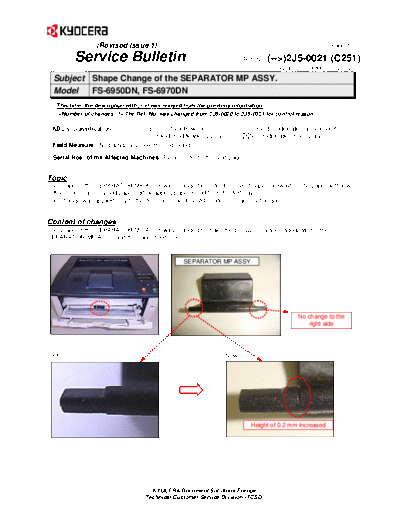

Image preview - the first page of the document
>> Download SB-2J5-0021-C251_1 documenatation <<
Text preview - extract from the document
(Revised Issue 1) (Page.1/2)
Service Bulletin Ref. No. (-->)2J5-0021 (C251)
October 1, 2012
Subject Shape Change of the SEPARATOR MP ASSY.
Model FS-6950DN, FS-6970DN l:
This time, the description with (-->) was revised from the previous information.
The Ref. No. was changed from 2J6-0020 to 2J5-0021 for control reason.
KDC's Classification Entire Stock Rework In-Field modification at next visit
In-Field modification by case No modification necessary
Field Measure: No particular problem is expected.
Serial Nos. of the Affected Machines: Please refer to the next page.
Topic
The shape of the SEPARATOR MP ASSY was changed in order to prevent paper skew when the paper with low
stiffness such as recycled paper, gift wrapping paper is fed from the MP tray.
This change was applied only to the A3 models and the A4 models remain unchanged.
Content of changes
The shape of the SEPARATOR MP ASSY was changed to make the pressure balance adequate for the
SEPARATOR MP ASSY and the paper feed roller.
SEPARATOR MP ASSY
No change to the
right side
[Old] [New]
Height of 0.2 mm increased
KYOCERA Document Solutions Europe
Technical Customer Service Division (TCSD)
(Revised Issue 1) (Page.2/2)
Service Bulletin Ref. No. (-->)2J5-0021 (C251)
October 1, 2012
Com pati-
Old Part New Part Q'ty bi lity
No. No. No. Description Remarks
Old New Old New
302F994070 302J594150
1 SEPARATOR MP ASSY 1 1 X O
2F994070 2J594150
Serial Nos. of the Affected Machines (Currently no production of FS-6950)
Model Name Product Code Destination Corresponding SN
FS-6970DN 1102J53EU0 KDE XAA2813179
1102J53AS0 KDAU XMU2800613
1102J53ND0 KDID From the next production
From the Sep. 2012
1102J53TH0 KDHG
production
From the Sep. 2012
1102J53TH0 KDTH
production
From the next
1102J5TTW0 KDTW
production
1102J53KS0 KDCN From the next production
KYOCERA Document Solutions Europe
Technical Customer Service Division (TCSD)
