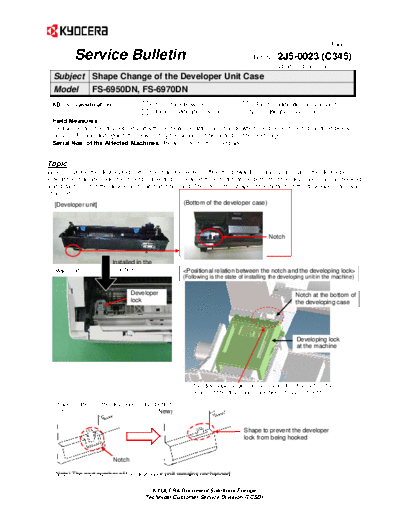

Image preview - the first page of the document
>> Download SB-2J5-0023-C345 documenatation <<
Text preview - extract from the document
(Page.1/2)
Service Bulletin Ref. No. 2J5-0023 (C345)
December 27, 2012
Subject Shape Change of the Developer Unit Case
Model FS-6950DN, FS-6970DN l:
KDC's Classification Entire Stock Rework In-Field modification at next visit
In-Field modification by case No modification necessary
Field Measures:
Please replace the developing unit with the new one after this change when the phenomenon described below
occurs. (Please distinguish the new unit by the serial number listed on the next page.)
Serial Nos. of the Affected Machines: Please refer to the next page.
Topic
When installing the developing unit in the machine while shifting it rightwards, in a very rare case, the developer
lock at the machine side might not be able to be released if the notch at the bottom of the developer case is hooked,
and detachment of the developing unit might be hard. Therefore, the shape of the bottom of the developer case was
changed.
[Developer unit] (Bottom of the developer case)
Notch
Installed in the
[Main unit] machine
(Following is the state of installing the developing unit in the machine)
Developer Notch at the bottom of
lock the developing case
Developing lock
at the machine
If the developer lock may be hooked on the notch, the
release of the developer lock becomes unsmooth.
[Shape change of the developer case bottom]
(Old) (New)
Shape to prevent the developer
lock from being hooked
Notch
(Note) The part number of the developer unit remains unchanged.
KYOCERA Document Solutions Europe
Technical Customer Service Division (TCSD)
(Page.2/2)
Service Bulletin Ref. No. 2J5-0023 (C345)
December 27, 2012
Serial Nos. of the Affected Machines/Units/MK Kits (FS-6950DN is currently not produced.)
Model Name Product Code Destination Affected Serial Number
1102J53EU0 KDE XAA2Y13848
1102J53AS0 KDAU XMU2X00625
1102J53ND0 KDID Next production
FS-6970DN
KDHG
1102J53TH0 XDC2X00294
KDTH
1102J5TTW0 Next production
KDTW
FS-6975DN 1102LTTTW0 Q162X01516
FS-6970DN 1102J53KS0 Next production
KDCN
1102LT3KS0 Next production
FS-6975DN
1102LT3KR0 KDKR Q4V2X02437
Part Name Part Number Destination Affected Serial Number
DV-440 302F793020 KDE WHD2Y26721
DV-440C 302F793080 THD2Y06977
KDKR
DV-444 302F793090 Next production
DV-450(E) 302J593020 KDE KVW2X15622
DV-453(KTST) 302J593080 KDCN Next production
DV-454(AO) 302J593030 KDAU KVX2Y34177
DV-454K 302LT93010 KDKR Next production
MK Kit Name Product Code Destination Affected Serial Number
KDE
KDAU
MK-440 1702F78EU0 GPW2X05831
KDTH
KDTW
MK-440 C(CHU) 1702F78KR1 Next production
KDKR
MK-440(CHU) 1702F78KR0 Next production
1702J58EU0 KDE Next production
KDAU
KDID
1702J58AS0 WZY2X01712
KDHG
MK-450
KDTH
1702J5TTW0 KDTW Next production
1702J53KS0 KDCN Next production
1702J58KR0 KDKR Next production
KYOCERA Document Solutions Europe
Technical Customer Service Division (TCSD)
