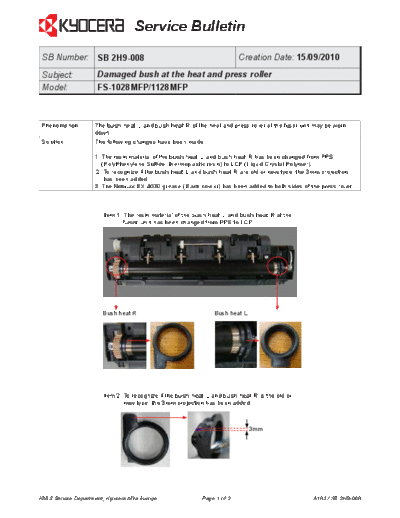

Image preview - the first page of the document



>> Download 2H9-008 documenatation <<

Text preview - extract from the document

                                   Service Bulletin
 SB Number: SB 2H9-008                                                   Creation Date: 15/09/2010
 Subject:            Damaged bush at the heat and press roller
 Model:              FS-1028MFP/1128MFP



Phenomenon          The bush heat L and bush heat R of the heat and press roller at the fuser unit may be worn
                    down.
Solution            The following changes have been made:

                    1. The resin material of the bush heat L and bush heat R has been changed from PPS
                       (PolyPhenylene Sulfide, thermoplastic resin) to LCP (Liquid Crystal Polymer).
                     2. To recognize if the bush heat L and bush heat R are old or new type, the 3mm projection
                        has been added.
                    3. The Noblux BX-4030 grease (Black colour) has been added to both sides of the press roller.



                       Item 1. The resin material of the bush heat L and bush heat R at the
                               fuser unit has been changed from PPS to LCP.




                       Bush heat R                             Bush heat L




                       Item 2: To recognize if the bush heat L and bush heat R is the old or
                               new type, the 3mm projection has been added.



                                                                             3mm




KMIS Service Department, Kyocera Mita Europe               Page 1 of 2                            A183 / SB 2H9-008
                                       Service Bulletin

                         Item 3. The Noblux BX-4030 grease (Black colour) has been added
                                 to both sides of the press roller.




Classification       Entire stock rework                      X In-field modification by case No modification necessary
                                            In-field modification at next visit
Field measure     When the above mentioned phenomenon occurs, please replace the bush heat L and bush heat R
                  with the latest type.



Parts
No. Old Parts              New Parts       Description                               Q'TY         Interchange- SP
    No.                    No.                                                                    ability
                                                                                     Old    New Old        New
1       302H493021         302H493022 FK-150(E)                                      1      1     O        O      O
        2H493021           2H493022
2       5MVX441XN001       302LZ25010      BUSH HEAT L                               1      1     O        O      O
        2BR20180           2LZ25010
3       302H425150         302LZ25020      BUSH HEAT R                               1      1     O        O      O
        2H425150           2LZ25020


Serial numbers of affected machines
Type                                                               Serial number
FS-1028MFP/1128MFP                                                 Not available



KMIS Service Department, Kyocera Mita Europe                       Page 2 of 2                        A183 / SB 2H9-008
