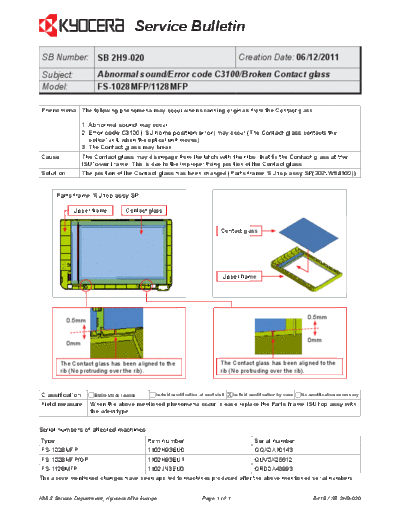

Image preview - the first page of the document



>> Download 2H9-020 documenatation <<

Text preview - extract from the document

                                       Service Bulletin
 SB Number: SB 2H9-020                                                              Creation Date: 06/12/2011
 Subject:             Abnormal sound/Error code C3100/Broken Contact glass
 Model:               FS-1028MFP/1128MFP

Phenomena The following phenomena may occur when scanning originals from the Contact glass.

                 1. Abnormal sound may occur.
                 2. Error code C3100 (ISU home position error) may occur (The Contact glass contacts the
                    optical unit, when the optical unit moves).
                 3. The Contact glass may break.
Cause            The Contact glass may disengage from the latch with the ribs, that fix the Contact glass at the
                 ISU lower frame. This is due to the improper fixing position of the Contact glass.
Solution         The position of the Contact glass has been changed (Parts frame ISU top assy SP(302LW94100)).


       Parts frame ISU top assy SP

            Upper frame            Contact glass


                                                                              Contact glass




                                                                               Upper frame




                                                                                                             0.5mm
           0.5mm


                                                                                                             0mm
           0mm


        The Contact glass has been aligned to the                             The Contact glass has been aligned to the
        rib (No protruding over the rib).                                     rib (No protruding over the rib).


Classification       Entire stock rework                        X In-field modification by case No modification necessary
                                             In-field modification at next visit
Field measure      When the above mentioned phenomena occur, please replace the Parts frame ISU top assy with
                   the latest type.

Serial numbers of affected machines
Type                                       Item number                                    Serial number
FS-1028MFP                                 1102H93EU0                                     QQX0X10143
FS-1028MFP/DP                              1102H93EU1                                     QUV0X25612
 FS-1128MFP                        1102JN3EU0                             QRD0X43993
The above mentioned changes have been applied to machines produced after the above mentioned serial numbers.


KMIS Service Department, Kyocera Mita Europe                        Page 1 of 1                               B418 / SB 2H9-020
