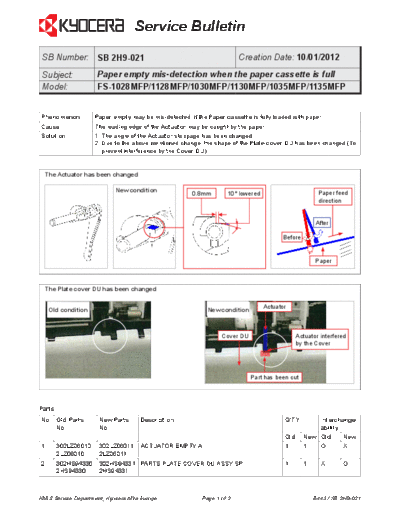

                                   Service Bulletin
 SB Number: SB 2H9-021                                                   Creation Date: 10/01/2012
 Subject:             Paper empty mis-detection when the paper cassette is full
 Model:               FS-1028MFP/1128MFP/1030MFP/1130MFP/1035MFP/1135MFP


Phenomenon           Paper empty may be mis-detected, if the Paper cassette is fully loaded with paper.
Cause                The leading edge of the Actuator may be caught by the paper.
Solution             1. The angle of the Actuator stoppage has been changed.
                     2. Due to the above mentioned change, the shape of the Plate cover DU has been changed (To
                        prevent interference by the Cover DU)


    The Actuator has been changed

                            New condition               0.8mm       10
