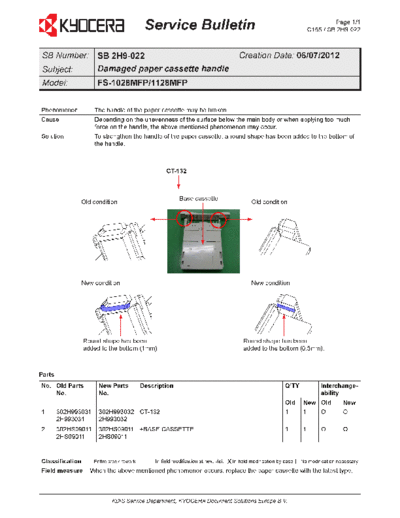

Image preview - the first page of the document



>> Download 2H9-022 documenatation <<

Text preview - extract from the document

                                            Service Bulletin                                                           Page /
                                                                                                               C65 / SB 2H9-022



 SB Number: SB 2H9-022                                                                Creation Date: 06/07/2012
 Subject:   Damaged paper cassette handle
 Model:               FS-1028MFP/1128MFP


Phenomenon           The handle of the paper cassette may be broken.
Cause                Depending on the unevenness of the surface below the main body or when applying too much
                     force on the handle, the above mentioned phenomenon may occur.
Solution             To strengthen the handle of the paper cassette, a round shape has been added to the bottom of
                     the handle.



                                                     CT-132



                                                            Base cassette
                 Old condition                                                           Old condition




                 New condition                                                           New condition




                 Round shape has been                                                  Round shape has been
                 added to the bottom (mm).                                             added to the bottom (0.5mm).



Parts
No. Old Parts          New Parts           Description                                               Q'TY          Interchange-
    No.                No.                                                                                         ability
                                                                                                     Old    New Old       New
        302H99303      302H993032 CT-32                                                                            O      O
        2H99303        2H993032
2       302HS090       302HS090 +BASE CASSETTE                                                                     O      O
        2HS090         2HS090


Classification       Entire stock rework                         X In-field modification by case No modification necessary
                                                In-field modification at next visit
Field measure       When the above mentioned phenomenon occurs, replace the paper cassette with the latest type.



                             KDIS Service Department, KYOCERA Document Solutions Europe B.V.
