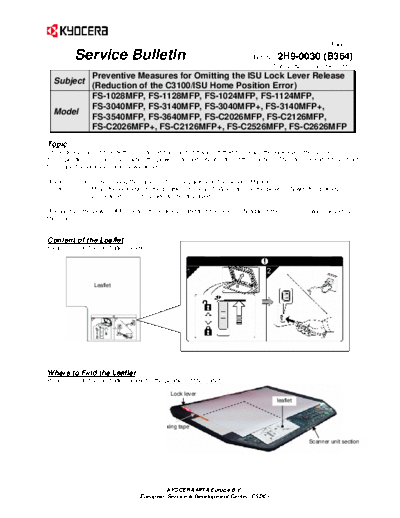

Image preview - the first page of the document



>> Download SB-2H9-0030-B364 documenatation <<

Text preview - extract from the document

                                                                                                             (Page.1/2)

           Service Bulletin                                                    Ref. No.  2H9-0030 (B364)
                                                                                      November 18, 2011
                  Preventive Measures for Omitting the ISU Lock Lever Release
  Subject
                  (Reduction of the C3100/ISU Home Position Error)
                  FS-1028MFP, FS-1128MFP, FS-1024MFP, FS-1124MFP,
                  FS-3040MFP, FS-3140MFP, FS-3040MFP+, FS-3140MFP+,
  Model
                  FS-3540MFP, FS-3640MFP, FS-C2026MFP, FS-C2126MFP,
                  FS-C2026MFP+, FS-C2126MFP+, FS-C2526MFP, FS-C2626MFP
Topic
The lock lever is set to lock the ISU during transport. If it was omitted to release the lock lever, the C3100 error (ISU
home position error) will occur when the power is turned ON at setup of the machine. Therefore, a leaflet to instruct
to release the lock lever was newly added.

(Please refer to (2) Removing the Tapes in 1-2-2 Unpacking in the Service Manual.)
Content:         Move the lock lever to the position of release*. When turning the power ON with the lock lever
                 unreleased, error message will be displayed.

*Please turn the power OFF, release the lock lever and turn the power ON again if the 3100 error was caused by
this reason.


Content of the Leaflet
Please refer to the illustration below.




                  Leaflet




Where to Find the Leaflet
Please refer to the illustration below for the position of the leaflet.

                                                  Lock lever
                                                                                        leaflet



                                              Fixing tape

                                                                                                     Scanner unit section




                                              KYOCERA MITA Europe B.V.
                                     European Service & Development Center (ESDC)
                                                                                                       (Page.2/2)

        Service Bulletin                                                  Ref. No. 2H9-0030 (B364)
                                                                                 November 18, 2011




KMC's Classification            Entire Stock Rework                    In-Field modification at next visit
                                In-Field modification by case           No modification necessary
Field Measure: Please make sure to release the lock lever before turning the power ON at setup.

Serial Nos. of the Affected Machines: To be informed later




                                         KYOCERA MITA Europe B.V.
                                European Service & Development Center (ESDC)
