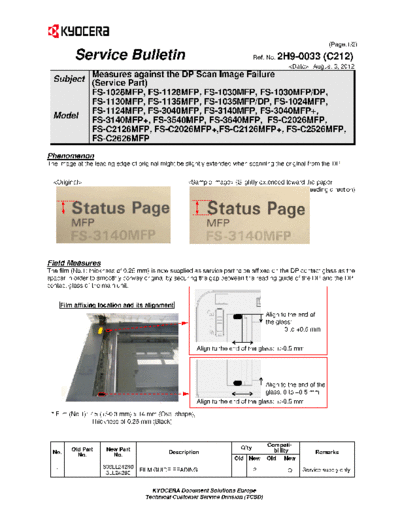

Service Bulletin Ref. No. 2H9-0033 (C212)
August 3, 2012
Measures against the DP Scan Image Failure
Subject (Service Part)
FS-1028MFP, FS-1128MFP, FS-1030MFP, FS-1030MFP/DP,
FS-1130MFP, FS-1135MFP, FS-1035MFP/DP, FS-1024MFP,
FS-1124MFP, FS-3040MFP, FS-3140MFP, FS-3040MFP+,
Model l:
FS-3140MFP+, FS-3540MFP, FS-3640MFP, FS-C2026MFP,
FS-C2126MFP, FS-C2026MFP+,FS-C2126MFP+, FS-C2526MFP,
FS-C2626MFP
Phenomenon
The image at the leading edge of original might be slightly extended when scanning the original from the DP.
(Slightly extended toward the paper
feeding direction)
Field Measures
The film (No.1: thickness of 0.25 mm) is now supplied as service part to be affixed on the DP contact glass as the
spacer in order to smoothly convey original by securing the gap between the reading guide of the DP and the DP
contact glass of the main unit.
Film affixing location and its alignment
(DP contact glass of the main machine) Align to the end of
the glass:
0 to +0.5 mm
Align to the end of the glass: +/-0.5 mm
Align to the end of the
glass: 0 to +0.5 mm
Align to the end of the glass: +/-0.5 mm
* Film (No.1): 7.5 (+/-0.3 mm) x 14 mm (Oval shape),
Thickness of 0.25 mm (Black)
Com pati-
Old Part New Part Q'ty bi lity
No. No. No. Description Remarks
Old New Old New
303LL24280
1 ------------ FILM GUIDE READING - 2 - O Service supply only
3LL24280
KYOCERA Document Solutions Europe
Technical Customer Service Division (TCSD)
(Page.2/2)
Service Bulletin Ref. No. 2H9-0033 (C212)
August 3, 2012
KDC's Classification Entire Stock Rework In-Field modification at next visit
In-Field modification by case No modification necessary
Field Measures:
Please affix two pieces of the film (No.1) to the DP contact glass when the phenomenon described above
occurs. (Before affixing the films, please clean the film affixing position on the DP contact glass with a dry
cloth.)
Serial Nos. of the Affected Machines:
As this is a service part, no affected serial number information will be available.
