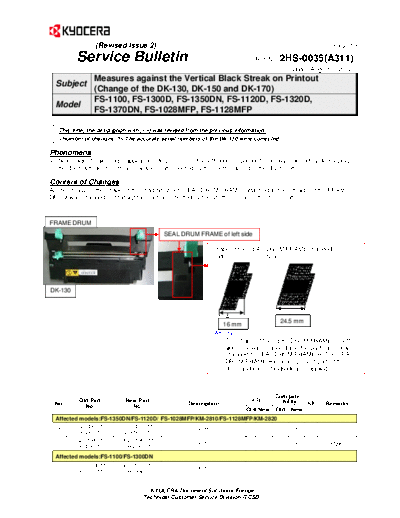

Image preview - the first page of the document
>> Download SB-2HS-0035-A311_2 documenatation <<
Text preview - extract from the document
(Revised Issue 2) (Page.1/3)
Service Bulletin Ref. No. 2HS-0035(A311)
August 3, 2012
Measures against the Vertical Black Streak on Printout
Subject
(Change of the DK-130, DK-150 and DK-170)
FS-1100, FS-1300D, FS-1350DN, FS-1120D, FS-1320D,
Model l:
FS-1370DN, FS-1028MFP, FS-1128MFP
This time, the description with (-->) was revised from the previous information.
The accurate serial numbers of the DK-150 were corrected.
Phenomena
Vertical black streaks might appear at 1 to 2 mm from the left edge on printout. This was caused by developing
on the drum with light from laser scaner unit reflected by the shutter spring in the drum unit.
Content of Changes
As the measure, the shape of the shading sheet (SEAL DRUM FRAME) attached to the left side of the FRAME
DRUM was changed so that light will not be reflected by the shutter spring in the drum unit.
FRAME DRUM
SEAL DRUM FRAME of left side
Shape of the SEAL DRUM FRAME changed
[Old] [New]
DK-130
24.5 mm
16 mm
(Attention)
The shape of the SEAL DRUM FRAME on left
side only was changed and the part name was
changed to SEAL DRUM FRAME B. The SEAL
DRUM FRAME B is a component part of the
drum and it is not individually supplied.
Com pati-
Old Part New Part Q'ty bility
No. No. No. Description SP Remarks
Old New Old New
Affected models:FS-1350DN/FS-1120D/ FS-1028MFP/KM-2810/FS-1128MFP/KM-2820
302H493010 302H493011
1 DK-150 O O 1 1 O
2H493010 2H493011
302H49K010 302H49K011
2 DK-150 O O 1 1 O For KMKR
2H49K010 2H49K011
Affected models:FS-1100/FS-1300DN
302HS93011 302HS93012
3 DK-130 O O 1 1 O -
2HS93011 2HS93012
KYOCERA Document Solutions Europe
Technical Customer Service Division (TCSD)
(Revised Issue 2) (Page.2/3)
Service Bulletin Ref. No. 2HS-0035(A311)
August 3, 2012
302HS93180 302HS93181 For WEP
4 DK-130(WP) O O 1 1 O
2HS93180 2HS93181
302HS9K011 302HS9K012
5 DK-130 O O 1 1 O For KMKR
2HS9K011 2HS9K012
Affected models:FS-1320DN/FS-1370DN
302LZ93060 302LZ93061
6 DK-170 O O 1 1 O -
2LZ93060 2LZ93061
302LZ9K060 302LZ9K061
7 DK-170 O O 1 1 O For KMKR
2LZ9K060 2LZ9K061
*The part with [O] in the SP column is a regular maintenance part. "+" Mark at the head of the description indicates that it is
a component part.
KMC's Classification Entire Stock Rework In-Field modification at next visit
In-Field modification by case No modification necessary
Field Measure:
If the problem described above arises, please replace the drum with the new one.
Serial Nos. of the Affected Machines: Please refer to the tables below.
*Attention) Please refer to the attached sheet for serial numbers of the reworked machine 3.
Models Destination Affected S/N Models Destination Affected S/N
FS-1100 All spec No production FS-1320D KDE Q630826686
FS-1300D KDA No production KDA Q620909384
KDE No production KDAU Q640901619
KDAU No production KDSG/HG Q930X00287
KDA (South
No production KDTH Q940X00128
America)
KDSG/HG No production KDA (South America) Q5V1302128
KDTH No production KDKR Q9M0901051
KDTW No production KDTW Q9Q0Z00012
KDCN XCF1305876 KDCN N7K0Z00001
KDKR No production KDID N910Z00001
KDTH No production LP3135/LP4135 UTAX/TA Q7R0902707
WEP No production PG L2135 Olivetti Q9U0900391
FS-1300DW WEP No production FS-1370DN KDE Q660X26411
LP3228/LP4228 UTAX/TA No production KDA Q650X07596
PG L2028 Olivetti No production KDAU Q670X01510
FS-1350DN All specs. No production KDSG/HG N1E0X00004
FS-1120D KDE Q5Y0X31385 KDTH Q950X00251
KDE (Consip) NP31302665 KDA (South America) Q5W0X00376
KDA Q5X0X08721 KDKR Q9N0X00681
KDAU Q5Z1403213 KDTW N1M1400023
KDSG/HG Q910900006 KDTH NM51200001
KDTH Q920900236 LP3335/LP4335 UTAX/TA Q7S0X04236
KDA (South
Q5U0901305
America)
KDKR Q9L0900691
KDTW Q9P0X00068
LP3130/LP4130 UTAX/TA Q7Q0900451
PG L2130 Olivetti Q9T0900541
KYOCERA Document Solutions Europe
Technical Customer Service Division (TCSD)
(Revised Issue 2) (Page.3/3)
Service Bulletin Ref. No. 2HS-0035(A311)
August 3, 2012
Models Destination Affected S/N Models Destination Affected S/N
FS-1028MFP KDE QQX0909698 FS-1128MFP KDE QRD0941463
KDA QRB0800931 KDA QRH0922166
KDAU No production. KDAU QRE0X02269
KDTH No production. KDCN Q2L0X00388
KDA
XVN0917124 KDID N8Z0Z00001
(Central America)
KDA
XYN0803221 KDTH QRG0X00692
(South America)
KDSG/HG QVE0X00001 KDSG/HG QVG0900396
KDKR Q110903500 KDKR Q3D0900538
KDCN Q2M0X00642 KDCN Q2L0X00388
FS-1028MFP/DP KDA QVD0904402 FS-1128MFP/SP KDE (Spain) QUW0X05186
KDA
KDAU QVM0900210 KM-2820 XVP0908671
(Center America)
KDA
KDTH QYV0900457 XYP0900896
(South America)
KDE QUV0822935 Philcopy QXW0900765
KDE (ALGERIA) NPW1500001 CD1128/D 2128 UTAX/TA QVC0910411
KDSG/HG QVF1200001 DC 2328 TA (Direct sales) Q120905276
KDCN Q2N0X00347 d-Copia 284MF Olivetti QUY0X05551
KM-2810 Philcopy QXV0901835
CD1028/DC2028 UTAX/TA QVB0903071
DC 2228 TA (Direct sales) Q3C0Z00115
d-Copia 283MF Olivetti QUX0901296
d-Copia
QVN0901712
283MFplus Olivetti
Name of the Drum Unit Affected S/N.
DK-130 From WUV0906480
DK-130(WP) From TUV0907616
(-->) From WJD0827677 to WJD0838385; from
DK-150
WJD0839539
DK-170 From K620888217
KYOCERA Document Solutions Europe
Technical Customer Service Division (TCSD)
