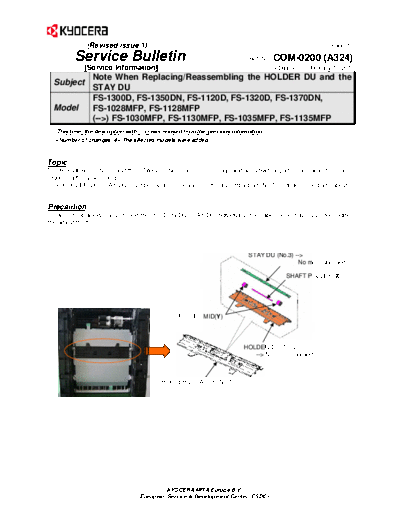

Image preview - the first page of the document
>> Download SB-COM-0200-A324_1 (1) documenatation <<
Text preview - extract from the document
(Revised issue 1) (Page.1/2)
Service Bulletin Ref. No. COM-0200 (A324)
[Service Information] January 12 2012
Note When Replacing/Reassembling the HOLDER DU and the
Subject
STAY DU
FS-1300D, FS-1350DN, FS-1120D, FS-1320D, FS-1370DN,
Model FS-1028MFP, FS-1128MFP
(-->) FS-1030MFP, FS-1130MFP, FS-1035MFP, FS-1135MFP
This time, the description with (-->) was revised from the previous information.
The affected models were added.
Topic
The HOLDER DU (No.2) and the STAY DU (No.3) are no more supplied as individual parts since adjustment is
required after assembling.
If the HOLDER DU/STAY DU must be replaced, please use the assembly part (No.1) instead of the parts above.
Precaution
In case of replacing/reassembling the HOLDER DU/STAY DU individually, the paper skew may occur depending on
the adjustment.
STAY DU (No.3) -->
No more supplied.
SHAFT PULLEY (X)
PULLEY MID(Y)
HOLDER DU (No.2)
--> No more supplied.
HOLDER DU ASSY (No.1)
KYOCERA MITA Europe B.V.
European Service & Development Center (ESDC)
(Revised issue 1) (Page.2/2)
Service Bulletin Ref. No. COM-0200 (A324)
[Service Information] January 12 2012
Q'ty Com pati-
Old Part New Part bi lity
No. No. No. Description SP Remarks
Old New Old New
302FM94060 PARTS HOLDER DU
1 ------------ - 1 - O O *1
2FM94060 ASSY SP
2FM21010 Supply as individual
2 ------------ +HOLDER DU - - - - - part is discontinued.
5MVX861XB001
2FM21020 Supply as individual
3 ------------ +STAY DU - - - - - part is discontinued.
5MML821SD009
The part with "O" in the SP column is a regular maintenance part. "+" Mark at the head of the description indicates that it is a
component part.
*1: Assembly part containing one piece of HOLDER DU (No.2), STAY DU (No3) and SHAFT PULLEY (X on the figure above:
302FM0242_) and two pieces of PULLEY MID(Y: 2FM0221_)
KMC's Classification Entire Stock Rework In-Field modification at next visit
In-Field modification by case No modification necessary
Field Measure:
Please use the assembly parts (No.1) if HOLDER DU (No.2) and STAY DU (No.3) must be replaced.
And, please don't remove HOLDER DU and STAY DU individually.
(Please don't reassemble them in the field.)
Serial Nos. of Affected Machine: ---------------------------------------
KYOCERA MITA Europe B.V.
European Service & Development Center (ESDC)
