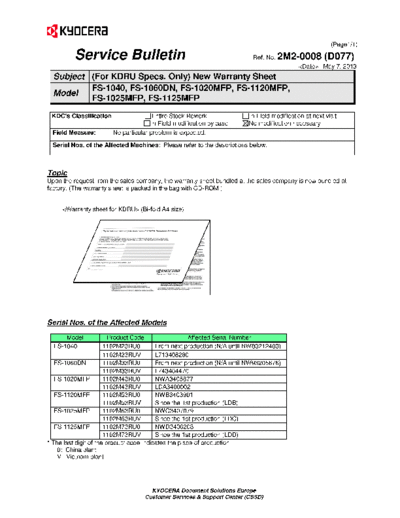

Image preview - the first page of the document



>> Download SB-2M2-0008-D077 documenatation <<

Text preview - extract from the document

                                                                                                         (Page1/1)

         Service Bulletin                                                 Ref. No.   2M2-0008 (D077)
                                                                                             May 7, 2013
  Subject (For KDRU Specs. Only) New Warranty Sheet
          FS-1040, FS-1060DN, FS-1020MFP, FS-1120MFP,
  Model                                                                                                        l:
          FS-1025MFP, FS-1125MFP
 KDC's Classification                  Entire Stock Rework               In-Field modification at next visit
                                      In-Field modification by case      No modification necessary
  Field Measure:        No particular problem is expected.

  Serial Nos. of the Affected Machines: Please refer to the descriptions below.



Topic
Upon the request from the sales company, the warranty sheet bundled at the sales company is now bundled at
factory. (The warranty sheet is packed in the bag with CD-ROM.)


      (Bi-fold A4 size)




Serial Nos. of the Affected Models

      Model              Product Code                  Affected Serial Number
  FS-1040              1102M23RU0         From next production (N/A until NW83212403)
                       1102M23RUV         L713408280
   FS-1060DN           1102M33RU0         From next production (N/A until NW93205676)
                       1102M33RUV         L743404470
   FS-1020MFP          1102M43RU0         NWA3405877
                       1102M43RUV         LDA3400002
   FS-1120MFP          1102M53RU0         NWB3403901
                       1102M53RUV         Since the 1st production (LDB)
   FS-1025MFP          1102M63RU0         NWC3407079
                       1102M63RUV         Since the 1st production (LDC)
   FS-1125MFP          1102M73RU0         NWD3406208
                       1102M73RUV         Since the 1st production (LDD)
* The last digit of the product code indicates the place of production
    0: China plant
    V: Vietnam plant




                                     KYOCERA Document Solutions Europe
                                   Customer Services & Support Center (CSSD)
