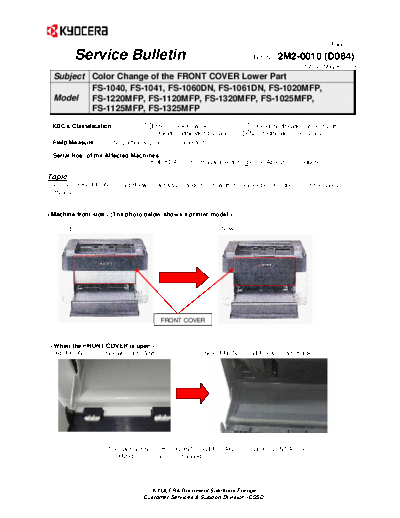

Image preview - the first page of the document



>> Download SB-2M2-0010-D084 documenatation <<

Text preview - extract from the document

                                                                                                        (Page.1/1)

            Service Bulletin                                             Ref. No.   2M2-0010 (D084)
                                                                                            May 8, 2013
  Subject Color Change of the FRONT COVER Lower Part
          FS-1040, FS-1041, FS-1060DN, FS-1061DN, FS-1020MFP,
  Model   FS-1220MFP, FS-1120MFP, FS-1320MFP, FS-1025MFP,                                                     l:
          FS-1125MFP, FS-1325MFP
 KDC's Classification                  Entire Stock Rework              In-Field modification at next visit
                                       In-Field modification by case    No modification necessary
 Field Measure:         No particular problem is expected.

 Serial Nos. of the Affected Machines:
                                   KDE/KDAS : From available timing in the April 2013 production

Topic
The color of the FRONT COVER lower part was changed from white to black upon a request from the sales
company.


 (The photo below shows a printer model.)

    (Old)                                                       (New)




                                          FRONT COVER




 (Old) FRONT COVER lower part: White                     (New) FRONT COVER lower part: Black




                   * The part number of the FRONT COVER (PARTS COVER FRONT ASSY SP:
                     302M29402_) remains unchanged.




                                      KYOCERA Document Solutions Europe
                                   Customer Services & Support Division (CSSD)
