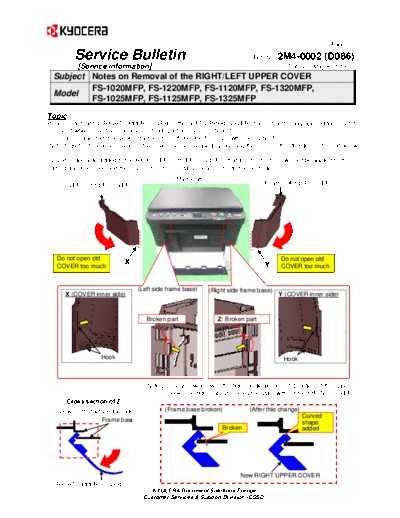

Image preview - the first page of the document
>> Download SB-2M4-0002-D086 documenatation <<
Text preview - extract from the document
(Page.1/2)
Service Bulletin Ref. No. 2M4-0002 (D086)
[Service information] May 8, 2013
Subject Notes on Removal of the RIGHT/LEFT UPPER COVER
FS-1020MFP, FS-1220MFP, FS-1120MFP, FS-1320MFP,
Model l:
FS-1025MFP, FS-1125MFP, FS-1325MFP
Topic
Please note that the RIGHT UPPER COVER or the LEFT UPPER COVER shall not be forcibly opened too much to
remove it while using the machine front side part as fulcrum. (Note 1)
(The frame base might be broken by the stress if opening the cover with excessive force.)
(Note 1) Both of the inner hooks of the cover can be released by opening the cover in the direction of the red arrow.
Curved shape was added to the RIGHT/LEFT UPPER COVER so that too much stress will not be applied to the
frame base when opening the cover. (For more details, please refer to the next page.)
(Main unit)
LEFT UPPER COVER RIGHT UPPER COVER
Do not open old Do not open old
COVER too much
X Y COVER too much
(Left side frame base) (Right side frame base)
X (COVER inner side) Y (COVER inner side)
Broken part Z: Broken part
Hook Hook
(Note 2) The yellow arrow in the figure indicates insert direction of the upper
hook. The figure above shows the state without the FRONT COVER.
Cross section of Z
(View from machine top side) (Frame base broken) (After this change)
Curved
Frame base shape
Broken added
New RIGHT UPPER COVER
RIGHT UPPER COVER
KYOCERA Document Solutions Europe
Customer Services & Support Division (CSSD)
(Page.2/2)
Service Bulletin Ref. No. 2M4-0002 (D086)
[Service information] May 8, 2013
[Change of the RIGHT/LEFT UPPER COVER]
New curved shape --- The part number (302M40402_/302M40403_) remains unchanged.
(Serial number information will not be available since this change will be applied after the old stock is used up.)
Curved
Curved
shape
shape
added
added
KYOCERA Document Solutions Europe
Customer Services & Support Division (CSSD)
