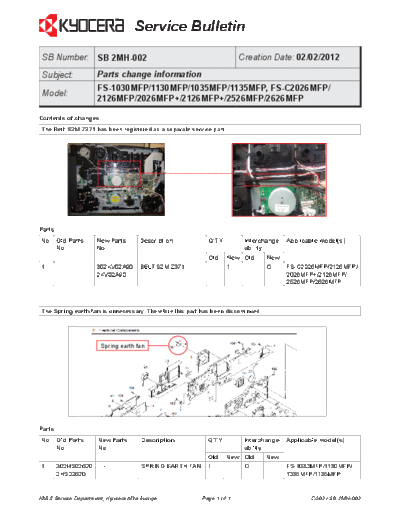

Image preview - the first page of the document



>> Download 2MH-002 documenatation <<

Text preview - extract from the document

                                   Service Bulletin
 SB Number: SB 2MH-002                                                  Creation Date: 02/02/2012
 Subject:            Parts change information
                     FS-1030MFP/1130MFP/1035MFP/1135MFP, FS-C2026MFP/
 Model:
                     2126MFP/2026MFP+/2126MFP+/2526MFP/2626MFP

Contents of changes
The Belt S2M Z371 has been registered as a separate service part.




Parts
No. Old Parts        New Parts       Description           Q'TY          Interchange- Applicable model(s)
    No.              No.                                                 ability
                                                           Old      New Old       New
1       ----------   302KV02A90      BELT S2M Z371         -        1    -        O     FS-C2026MFP/2126MFP/
                     2KV02A90                                                           2026MFP+/2126MFP/
                                                                                        2526MFP/2626MFP



The Spring earth fan is unnecessary. Therefore this part has been discontinued.




                      Spring earth fan




Parts
No. Old Parts         New Parts      Description           Q'TY          Interchange- Applicable model(s)
    No.               No.                                                ability
                                                           Old      New Old       New
1       302HS02620 ----------        SPRING EARTH FAN      1        -    O        -     FS-1030MFP/1130MFP/
        2HS02620                                                                        1035MFP/1135MFP


KMIS Service Department, Kyocera Mita Europe             Page  of                              C002 / SB 2MH-002
