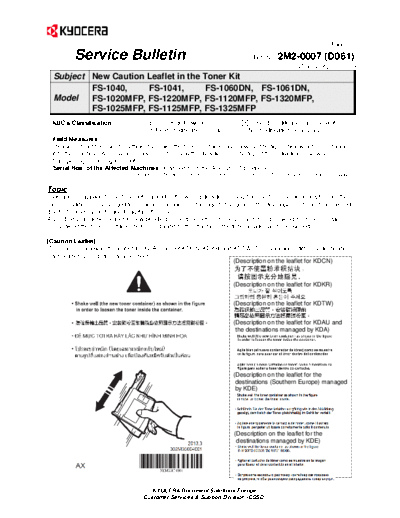

Image preview - the first page of the document
>> Download SB-2M2-0007-D061 documenatation <<
Text preview - extract from the document
(Page.1/1)
Service Bulletin Ref. No. 2M2-0007 (D061)
April 3, 2013
Subject New Caution Leaflet in the Toner Kit
FS-1040, FS-1041, FS-1060DN, FS-1061DN,
Model FS-1020MFP, FS-1220MFP, FS-1120MFP, FS-1320MFP, l:
FS-1025MFP, FS-1125MFP, FS-1325MFP
KDC's Classification Entire Stock Rework In-Field modification at next visit
In-Field modification by case No modification necessary
Field Measures:
Please instruct the user to sufficiently shake the toner container as shown in the figure below before installing
it to the machine. Also, please make sure to follow the directions on the top of the individual case when
transporting or storing toner kit.
Serial Nos. of the Affected Machines: Planned from the April 2013* production
* The above is the plan at the present moment. Please note that this information is subject to change.
Topic
If vibration is applied to the toner kit stacked in the wrong direction during transport or toner kit is kept under the
same condition for prolonged term, abnormal noise or damage to the gear in the developer unit might be caused
due to the increased torque to agitate the toner.
Accordingly, a caution leaflet is now bundled in the toner kit to strongly recommend shaking the toner container.
(By shaking the toner container before installing to the machine, the toner inside can be loosened.)
[Caution Leaflet]
(The sample below is the leaflet for KDAS except KDCN, KDKR and KDTW. The languages differ by destination.
Each leaflet is printed on a pink sheet.)
(Description on the leaflet for KDCN)
(Description on the leaflet for KDKR)
(Description on the leaflet for KDTW)
(Description on the leaflet for KDAU and
the destinations managed by KDA)
(Description on the leaflet for the
destinations (Southern Europe) managed
by KDE)
(Description on the leaflet for the
destinations managed by KDE)
KYOCERA Document Solutions Europe
Customer Services & Support Division (CSSD)
