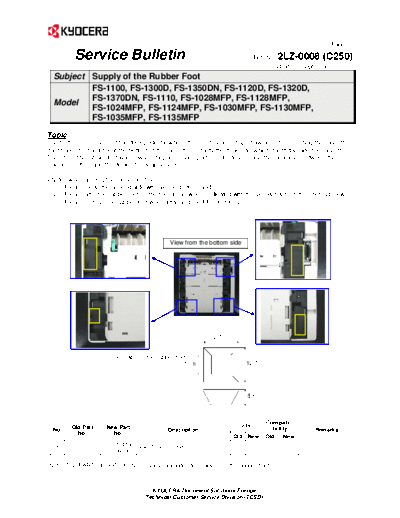

Image preview - the first page of the document



>> Download SB-2LZ-0008-C250 documenatation <<

Text preview - extract from the document

                                                                                                            (Page.1/2)

          Service Bulletin                                                       Ref. No.   2LZ-0008 (C250)
                                                                                             September 12, 2012
  Subject Supply of the Rubber Foot
          FS-1100, FS-1300D, FS-1350DN, FS-1120D, FS-1320D,
          FS-1370DN, FS-1110, FS-1028MFP, FS-1128MFP,
  Model                                                                                                          l:
          FS-1024MFP, FS-1124MFP, FS-1030MFP, FS-1130MFP,
          FS-1035MFP, FS-1135MFP
Topic
Due to the unevenness of the desk/pedestal where the machine is set up, drawing out or inserting the cassette
might become hard due if the bottom of the cassette contacts the desk, etc. which might damage the cassette.
Therefore, the rubber foot was newly set up as service part in order to increase the clearance between the
machine bottom and the desk, etc. by approx. 3 mm.


  1. Please clean the affixing side with alcohol beforehand.
  2. Please affix the rubber foot on the four areas where indicated with the yellow frame in the photos below.
  3. Please remove the rubber foot when attaching the PF-100/PF-120.




                                             View from the bottom side




                                                            12.7mm



                                                  7mm                       12.7mm




                                                                            5.8mm




                                                                          Q'ty       Com pati-
  No.   Old Part        New Part             Description                               bi lity         Remarks
          No.             No.
                                                                     Old New         Old New
                       302LZ94190
   1    ------------              PARTS FOOT SP                       -          1    -        O
                        2LZ94190

(Note) The PARTS FOOT SP (No.1) above includes four pieces of the rubber foot.



                                       KYOCERA Document Solutions Europe
                                     Technical Customer Service Division (TCSD)
                                                                                                         (Page.2/2)

        Service Bulletin                                                    Ref. No.   2LZ-0008 (C250)
                                                                                        September 12, 2012




KMC's Classification                Entire Stock Rework                   In-Field modification at next visit
                                    In-Field modification by case        No modification necessary
Field Measure:         Please order the above if necessary.
Serial Nos. of the Affected Machines:
This is part number information. The serial number information will not be available.




                                     KYOCERA Document Solutions Europe
                                   Technical Customer Service Division (TCSD)
