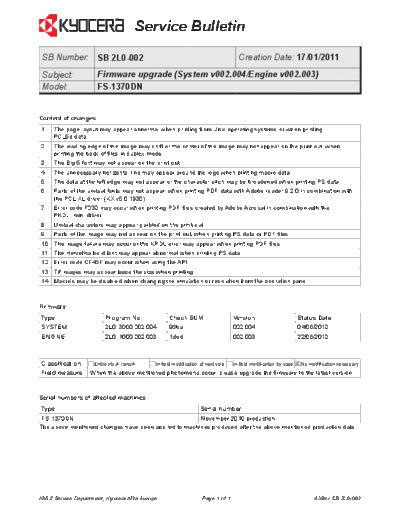

Image preview - the first page of the document



>> Download 2L0-002 documenatation <<

Text preview - extract from the document

                                      Service Bulletin
 SB Number: SB 2L0-002                                                             Creation Date: 17/01/2011
 Subject:            Firmware upgrade (System v002.004/Engine v002.003)
 Model:              FS-1370DN


Content of changes
1    The page layout may appear abnormal when printing from Unix operating systems or when printing
     PCL5e data.
2    The leading edge of the image may shift or the center of the image may not appear on the print-out, when
     printing the back of files in duplex mode.
3    The Big 5 font may not appear on the print-out.
4    The unnecessary horizontal line may appear around the logo when printing macro data.
5    The data at the left edge may not appear or the character pitch may be broadened when printing PS data.
6    Parts of the umlaut fonts may not appear, when printing PDF data with Adobe reader 9.2.0 in combination with
     the PCL-XL driver (KX v5.0.1930).
7    Error code F030 may occur when printing PDF files created by Adobe Acrobat in combination with the
     PKDL_mini driver.
8    Umlaut characters may appear garbled on the print-out.
9    Parts of the image may not appear on the print-out, when printing PS data or PDF files.
10 The image failure may occur or the KPDL error may appear when printing PDF files.
11 The Helvetica bold font may appear abnormal when printing PS data.
12 Error code CF46F may occur when using the API.
13 Tif images may appear twice the size when printing.
14 Macro's may be disabled when changing the emulation or resolution from the operation panel.



Firmware
Type                     Program No.              Check SUM                      Version                         Status Date
SYSTEM                   2L0_3000.002.004         96ba                           002.004                         04/06/2010
ENGINE                   2L0_1000.002.003         1ded                           002.003                         22/06/2010



Classification      Entire stock rework    In-field modification at next visit         X No modification necessary
                                                                                 In-field modification by case
Field measure     When the above mentioned phenomena occur, please upgrade the firmware to the latest version.


Serial numbers of affected machines
Type                                                              Serial number
 FS-1370DN                                            November 2010 production.
The above mentioned changes have been applied to machines produced after the above mentioned production date.




KMIS Service Department, Kyocera Mita Europe                      Page  of                                            A384 / SB 2L0-002
