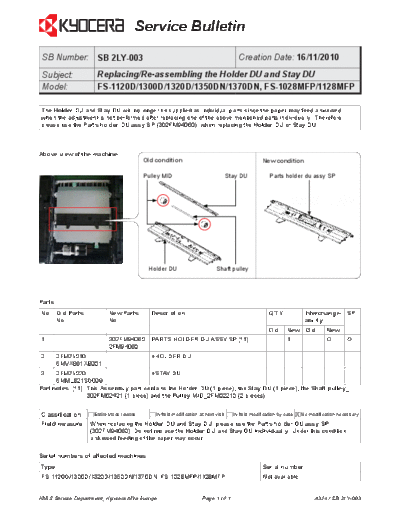

Image preview - the first page of the document



>> Download 2LY-003 documenatation <<

Text preview - extract from the document

                                              Service Bulletin
 SB Number: SB 2LY-003                                                                 Creation Date: 16/11/2010
 Subject:                 Replacing/Re-assembling the Holder DU and Stay DU
 Model:                   FS-1120D/1300D/1320D/1350DN/1370DN, FS-1028MFP/1128MFP

The Holder DU and Stay DU will no longer be supplied as individual parts since the paper may feed a skewed,
when the adjustment is not performed after replacing one of the above mentioned parts individually. Therefore
please use the Parts holder DU assy SP (302FM94060), when replacing the Holder DU or Stay DU.



Above view of the machine
                                               Old condition                                     New condition

                                               Pulley MID                        Stay DU            Parts holder du assy SP




                                                Holder DU                    Shaft pulley




Parts
No. Old Parts                  New Parts         Description                                        Q'TY           Interchange- SP
    No.                        No.                                                                                 ability
                                                                                                    Old     New Old          New
1       ------------           302FM94060        PARTS HOLDER DU ASSY SP (*1)                       -       1      -         O        O
                               2FM94060
2       2FM21010               ------------      +HOLDER DU                                         -       -      -         -        -
        5MVX861XB001
3     2FM21020           ------------  +STAY DU                                  -       -      -      -      -
      5MML821SD009
Part notes: (*1): This Assembly part contains the Holder DU (1 piece), the Stay DU (1 piece), the Shaft pulley_
                  302FM02421 (1 piece) and the Pulley MID_2FM02210 (2 pieces)


Classification           Entire stock rework  In-field modification at next visit In-field modification by case X No modification necessary
Field measure          When replacing the Holder DU and Stay DU, please use the Parts holder DU assy SP
                       (302FM94060). Do not replace the Holder DU and Stay DU individually. Under this condition,
                       a skewed feeding of the paper may occur.

Serial numbers of affected machines
Type                                                                                             Serial number
FS-1120D/1300D/1320D/1350DN/1370DN, FS-1028MFP/1128MFP                                           Not available


KMIS Service Department, Kyocera Mita Europe                           Page  of                                        A324 / SB 2LY-003
