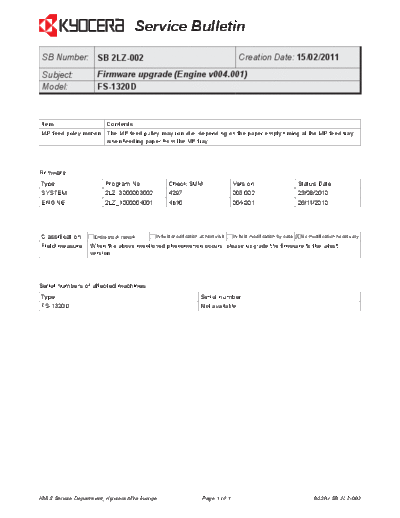

Image preview - the first page of the document
>> Download 2LZ-002 documenatation <<
Text preview - extract from the document
Service Bulletin
SB Number: SB 2LZ-002 Creation Date: 15/02/2011
Subject: Firmware upgrade (Engine v004.001)
Model: FS-1320D
Item Contents
MP feed puley motion The MP feed pulley may run idle, depending on the paper empty timing at the MP feed tray,
when feeding paper from the MP tray.
Firmware
Type Program No. Check SUM Version Status Date
SYSTEM 2LZ_3000003002 4297 003.002 23/08/2010
ENGINE 2LZ_1000004001 4b10 004.001 26/11/2010
Classification Entire stock rework In-field modification at next visit X No modification necessary
In-field modification by case
Field measure When the above mentioned phenomenon occurs, please upgrade the firmware to the latest
version.
Serial numbers of affected machines
Type Serial number
FS-1320D Not available
KMIS Service Department, Kyocera Mita Europe Page of B028 / SB 2LZ-002
