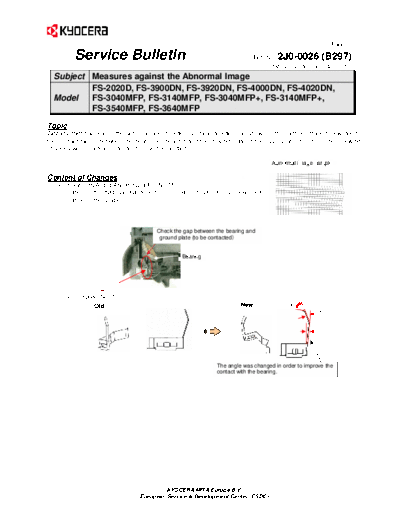

Image preview - the first page of the document
>> Download SB-2J0-0026-B297 documenatation <<
Text preview - extract from the document
(Page.1/2)
Service Bulletin Ref. No.2J0-0026 (B297)
September 14, 2011
Subject Measures against the Abnormal Image
FS-2020D, FS-3900DN, FS-3920DN, FS-4000DN, FS-4020DN,
Model FS-3040MFP, FS-3140MFP, FS-3040MFP+, FS-3140MFP+,
FS-3540MFP, FS-3640MFP
Topic
Zigzags might appear in the sub-scanning direction (vertical direction) as shown in the sample image below due to
the contact failure between the heat roller bearing and the ground plate of the fuser unit. Therefore, the following
changes were made in order to improve the contact.
Abnormal image sample
Content of Changes
Ground plate (PLATE EARTH FUSER) (No.15)
- Change of the material (Hardened): SUS 304CSP1/2H SUS 304CSPH
- Change of the shape
Check the gap between the bearing and
ground plate (to be contacted)
Bearing
Ground plate (No.15)
Old New 45 ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
