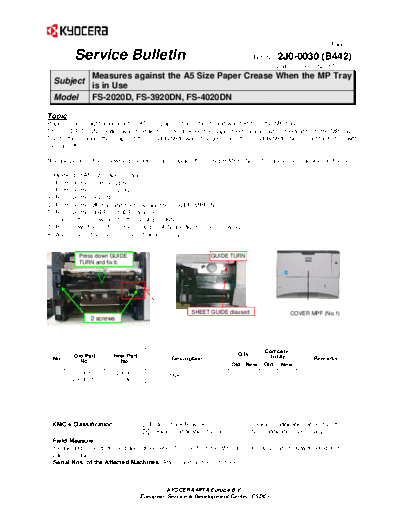

Image preview - the first page of the document



>> Download SB-2J0-0030-B442 documenatation <<

Text preview - extract from the document

                                                                                                                (Page.1/1)

         Service Bulletin                                                            Ref. No.2J0-0030 (B442)
                                                                                             December 17, 2011
               Measures against the A5 Size Paper Crease When the MP Tray
  Subject
               is in Use
  Model        FS-2020D, FS-3920DN, FS-4020DN

Topic
Paper crease might appear when A5 size paper of a certain brand was fed from the MP tray.
The GUIDE TURN position was modified in order to keep the paper feed balance when feeding from the MP tray.
Due to this change, the shape of the COVER MPF was changed since the COVER MPF (No.1) might interfere with
the cassette.

*Please perform the following procedures and replace the COVER MPF (No.1) to handle the machines in the field.


1. Remove the TOP COVER.
2. Remove the LEFT COVER.
3. Remove the cassette.
4. Remove the MP tray and then replace the COVER MPF (No.1).
5. Remove the SHEET GUIDE (disused).
6. Loosen the screw (x2) for the GUIDE TURN.
7. Push down the center of the GUIDE TURN and tighten the screw (x2).
8. Assemble in the reverse order of disassembly.


           Press down GUIDE                                 GUIDE TURN
           TURN and fix it.




                                                     SHEET GUIDE disused                           COVER MPF (No.1)
               2 screws




                                                                                        Com pati-
         Old Part       New Part                                          Q'ty            bi lity
  No.      No.            No.                 Description                                                 Remarks
                                                                      Old New           Old New
        302J008010    302J008011
   1                                  COVER MPF                       1          1       O     O
         2J008010      2J008011




 KMC's Classification                 Entire Stock Rework                        In-Field modification at next visit
                                      In-Field modification by case               No modification necessary
 Field Measure:
 Please align sheets to the paper guide when feeding from the MP tray. This can prevent skew feeding and
 paper crease.
 Serial Nos. of the Affected Machines: After using up the old stock



                                            KYOCERA MITA Europe B.V.
                                   European Service & Development Center (ESDC)
