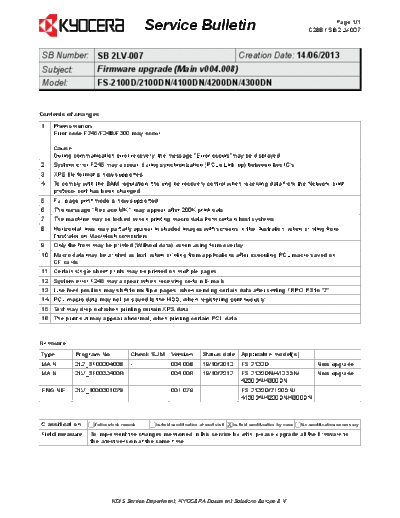

Image preview - the first page of the document



>> Download 2LV-007 documenatation <<

Text preview - extract from the document

                                          Service Bulletin                                                      Page 1/1
                                                                                                       C288 / SB 2LV-007



 SB Number: SB 2LV-007                       Creation Date: 14/06/2013
 Subject:   Firmware upgrade (Main v004.008)
 Model:             FS-2100D/2100DN/4100DN/4200DN/4300DN


Contents of changes
1   Phenomenon
    Error code F245/F24B/F000 may occur.

    Cause
    During communication error recovery, the message "Error occurs"may be displayed.
2   System error F245 may appear, during synchronization (PCLe Link-up) between two IC's.
3   XPS file format is now supported.
4   To comply with the BAM regulation, the engine recovery control when receiving data from the Network print
    protocol port has been changed.
5   Full page print mode is now supported.
6   The message "Replace MK " may appear after 200K print-outs.
7   The machine may be locked, when printing macro data from certain host systems.
8   Horizontal lines may partially appear in shaded images with screens in the illustration, when printing from
    Illustrator on Macintosh computers.
9   Only the from may be printed (Without data), when using form overlay.
10 Macro data may be printed as text, when printing from applications after executing PCL macro saved on
   CF cards.
11 Certain single sheet prints may be printed on multiple pages.
12 System error F245 may appear, when receiving certain E-mails.
13 Line feed position may shift to multiple pages, when sending certain data after setting FRPO P3 to "2".
14 PCL macro data may not be saved to the HDD, when registering continuously.
15 Text may drop out when printing certain XPS data.
16 The print out may appear abnormal, when printing certain PCL data.



Firmware
Type        Program No.            Check SUM       Version         Status date Applicable model(s)
MAIN        2L2_3F00004008         ----            004.008         19/10/2012    FS-2100D                 New upgrade
MAIN        2LV_3F00004008         ----            004.008         19/10/2012    FS-2100DN/4100DN/        New upgrade
                                                                                 4200DN/4300DN
ENGINE      2LV_1000001079         ----            001.079         ----------    FS-2100D/2100DN/
                                                                                 4100DN/4200DN/4300DN



Classification     Entire stock rework                            X In-field modification by case No modification necessary
                                           In-field modification at next visit
Field measure    To implement the changes mentioned in this service bulletin, please upgrade all the firmware to
                 the latest version at the same time.




                           KDIS Service Department, KYOCERA Document Solutions Europe B.V.
