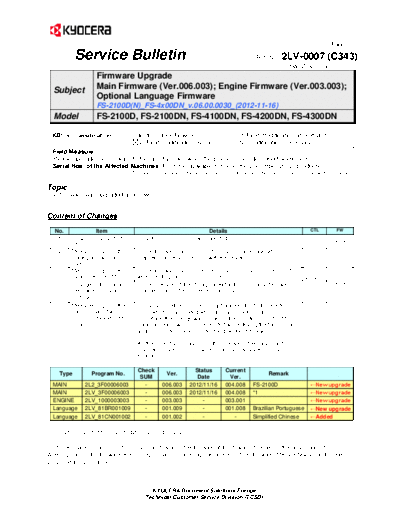

Image preview - the first page of the document
>> Download SB-2LV-0007-C343 documenatation <<
Text preview - extract from the document
(Page.1/1)
Service Bulletin Ref. No. 2LV-0007 (C343)
December 27, 2012
Firmware Upgrade
Subject Main Firmware (Ver.006.003); Engine Firmware (Ver.003.003);
Optional Language Firmware
FS-2100D(N)_FS-4x00DN_v.06.00.0030_(2012-11-16)
Model FS-2100D, FS-2100DN, FS-4100DN, FS-4200DN, FS-4300DN l:
KDC's Classification Entire Stock Rework In-Field modification at next visit
In-Field modification by case No modification necessary
Field Measure:
Please upgrade the firmware to the latest version when the phenomenon described below occurs.
Serial Nos. of the Affected Machines: From the available timing in the December 2012* production
* The above is the plan at the present moment. Please note that this information is subject to change.
Topic
The firmware was upgraded as follows.
Content of Changes
No. Item Details CTL FW
1 Support of simplified Simplified Chinese is now supported. 795893 MAIN
LANGUAGE
Chinese CN
2 Measures against the Correction was made in order to prevent blank page when 669329 MAIN
TP-12-149
blank page with a outputting a certain TIFF file with KX Driver. TA-S12-031
certain file
3 Measures against the Correction was made in order to prevent the system error F515 795233 MAIN
TP-12-251
system error F515 when printing1000 copies or more. #1569630
4 Change of the option The expression of the storage area for the job box setting was 795760 LANGUAGE
BR
message in Brazilian changed from "internal memory" to "SSD".
Portuguese
5 Measures against the The service call error C7900 might appear due to the electrical 796950 ENGINE
service call C7900 noise which is generated when the toner motor is driven.
(Drum unit EEPROM Therefore, the change was made so that the drum EEPROM
error) communication will not be executed while driving the toner motor
as the corrective measures for the ENGINE firmware.
As the corrective measures in the hardware, the capacitor to
erase the electrical noise will be informed by another Service
Bulletin.
Check Status Current
Type Program No. Ver. Remark
SUM Date Ver.
MAIN 2L2_3F00006003 - 006.003 2012/11/16 004.008 FS-2100D New upgrade
MAIN 2LV_3F00006003 - 006.003 2012/11/16 004.008 *1 New upgrade
ENGINE 2LV_1000003003 - 003.003 - 003.001 New upgrade
Language 2LV_81BR001009 - 001.009 - 001.008 Brazilian Portuguese New upgrade
Language 2LV_81CN001002 - 001.002 - - Simplified Chinese Added
*1: FS-2100DN, FS-4100DN, FS-4200DN, FS-4300DN
For the KD sales companies, it is possible to download the firmware at the download center on the Service World.
When upgrading the firmware or replacing a board, please upgrade all kinds of the firmware (MAIN, ENGINE) to the latest
version at the same time.
