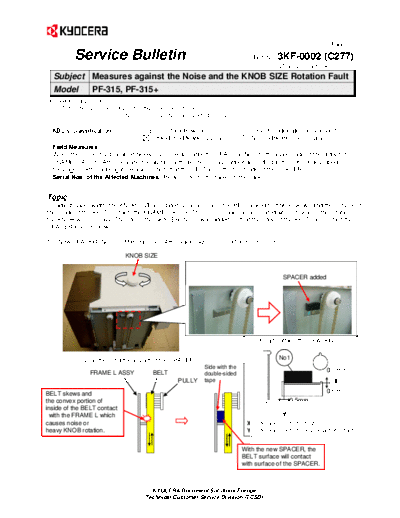

Image preview - the first page of the document
>> Download SB-3KF-0002-C277 documenatation <<
Text preview - extract from the document
(Page.1/2)
Service Bulletin Ref. No. 3KF-0002 (C277)
Oct. 18, 2012
Subject Measures against the Noise and the KNOB SIZE Rotation Fault
Model PF-315, PF-315+ l:
(Installation target models)
PF-315: FS-3900DN, FS-4000DN, FS-3920DN, FS-4020DN
PF-315+: FS-2100D, FS-2100DN, FS-4100DN, FS-4200DN, FS-4300DN
KDC's Classification Entire Stock Rework In-Field modification at next visit
In-Field modification by case No modification necessary
Field Measures:
When the problems described below occur, please affix the SPACER (No1) to the upper side of the cutout of
FRAME L ASSY. (After cleaning the surface with alcohol, please affix it according to the criteria described on
the page 1. After affixing it, please confirm that the BELT is on the front side of the SPACER.)
Serial Nos. of the Affected Machines: Please refer to the table on the page 2.
Topic
To adjust paper width, the KNOB SIZE is rotated. In a rare case, the BELT linked to KNOB skews and the convex of
the inside of the BELT contacts the FRAME L ASSY. Then, some noise is generated when driving or the rotation of
the KNOB will be heavy. Therefore, the SPACER (No.1) was added so that the edge of the BELT can contact the
SPACER when it skews.
1. New SPACER (No.1) (Material/color: ABS/black; Size: 10 mmX19 mm, t=6 mm)
KNOB SIZE
SPACER added
No1
Side with the
FRAME L ASSY BELT 0.5mm
double-sided
PULLY tape X
BELT skews and 0mm
the convex portion of 0.5mm 0.5mm
inside of the BELT contact
with the FRAME L which Y
causes noise or X: Criteria for bent of cutout.
heavy KNOB rotation. Y: Criteria for bent of the side part of cutout.
With the new SPACER, the
BELT surface will contact
with surface of the SPACER.
KYOCERA Document Solutions Europe
Technical Customer Service Division (TCSD)
(Page.2/2)
Service Bulletin Ref. No. 3KF-0002 (C277)
Oct. 18, 2012
Com pati-
Old Part New Part Q'ty bi lity
No. No. No. Description Remarks
Old New Old New
303KF10140
1 ----- SPACER - 1 - O
3KF10140
Serial Nos. of the Affected Machines
Model Destination Item Code Affected Serial No.
PF-315 Other than KDCN specs. 1203KF0KL0 GPS2806129
KDCN 1203KF8KS0 From the next production
Other than UTAX and
PF-315+ 1203KF0KL1 L4Y2800004
Olivetti specs.
UTAX 1203KF8UT0 L512800001
Olivetti 1203KF8LV0 L972900001
KYOCERA Document Solutions Europe
Technical Customer Service Division (TCSD)
