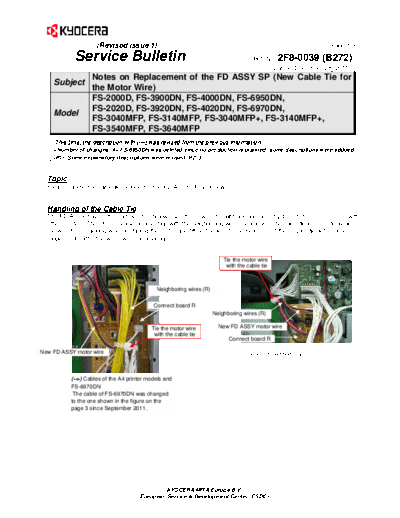

Image preview - the first page of the document
>> Download SB-2F8-0039-B272_1 documenatation <<
Text preview - extract from the document
(Revised issue 1) (Page.1/3)
Service Bulletin Ref. No. 2F8-0039 (B272)
December 28, 2011
Notes on Replacement of the FD ASSY SP (New Cable Tie for
Subject
the Motor Wire)
FS-2000D, FS-3900DN, FS-4000DN, FS-6950DN,
FS-2020D, FS-3920DN, FS-4020DN, FS-6970DN,
Model
FS-3040MFP, FS-3140MFP, FS-3040MFP+, FS-3140MFP+,
FS-3540MFP, FS-3640MFP
This time, the description with (-->) was revised from the previous information.
FS-6950DN was deleted since no production is planned; some descriptions were addded
(P1); Some explanatory descriptions were revised (P2 ,3).
Topic
Please handle the cable tie included in the FD ASSY SP as follows.
Handling of the Cable Tie
The FD ASSY having the part number below uses the new motor with a longer wire by 40 mm for common use with
other models. Therefore, please bundle it up with the neighboring wires by applying the cable tie in order to avoid
the wire from slacking when installing the motor and fitting the wire to the board. (Cut the surplus tie with scissors,
nippers, etc. after the wires were bundled up.)
Tie the motor wire
with the cable tie
Neighboring wires (R)
Connect board R
Neighboring wires (R)
Tie the motor wire New FD ASSY motor wire
with the cable tie
Connect board R
New FD ASSY motor wire Cables of the MFP models
(-->) Cables of the A4 printer models and
FS-6970DN
The cable of FS-6970DN was changed
to the one shown in the figure on the
page 3 since September 2011.
KYOCERA MITA Europe B.V.
European Service & Development Center (ESDC)
(Revised issue 1) (Page.2/3)
Service Bulletin Ref. No.2F8-0039 (B272)
December 28, 2011
Com pati-
Old Part New Part Q'ty bi lity
No. No. No. Description Remarks
Old New Old New
302F794025 302F794026
1 2F794025 2F794026 FD ASSY SP 1 1 O O FS-6950DN
2 302F894014 302F894015 FD ASSY SP 1 1 O O FS-2000D
2F894014 2F894015
302F894063 302F894064 FS-2000D
3 2F894063 2F894064 FD ASSY SP(UT) 1 1 O O (UTAX)
302F994025 302F994026
4 2F994025 2F994026 FD ASSY SP 1 1 O O FS-3900DN
5 302F994154 302F994155 FD ASSY SP(UT) 1 1 O O FS-3900DN
2F994154 2F994155 (UTAX)
302F994260 302F994261 EP 370DN
6 2F994260 2F994261 FD ASSY EP 370DN SP 1 1 O O (KMA)
302J094020 302J094021
10 2J094020 2J094021 FD ASSY SP 1 1 O O FS-2020D
11 302J094070 302J094071 FD ASSY SP(UT) 1 1 O O FS-2020D
2J094070 2J094071 (UTAX)
302J194010 302J194011 FS-3920DN
12 2J194010 2J194011 FD ASSY SP 1 1 O O FS-4020DN
302J294030 302J294031 FS-4020DN
13 2J294030 2J294031 FD ASSY SP(UT) 1 1 O O (UTAX)
14 302J594072 302J594073 FD ASSY SP 1 1 O O FS-6970DN
2J594072 2J594073
302F944130 302F944131
15 2F944130 2F944131 +MOTOR EJECT 1 1 O O *
7YZM420003++H01
16 - YZ052580 +ACCESS BAND - 1 - O
*The new part is used for the FS-3140MFP +, FS-3040MFP +, FS-3640MFP and FS-3540MFP since the first production.
KMC's Classification Entire Stock Rework In-Field modification at next visit
In-Field modification by case No modification necessary
Field Measure: Please note the above when replacing the FD ASSY.
Serial Nos. of the Affected Machines: ----------------------
KYOCERA MITA Europe B.V.
European Service & Development Center (ESDC)
(Revised issue 1) (Page.3/3)
Service Bulletin Ref. No. 2F8-0039 (B272)
December 28, 2011
Current FD ASSY Future plan
(New part)
FD ASSY Machine FD ASSY Machine production
production
A4 printer Cable tie bundled Cable tie applied leaflet added (cable tie No change
remains) *3
A3 printer (FS- Cable tie bundled Cable tie applied Cable tie applied to wire Cable tie relocated
6950DN/6970DN) (Refer to figure below) (same as FD ASSY;
Please see below.)
MFP *1 Cable tie bundled Cable tie applied Cable tie and leaflet No change
*2 bundled
*3
*1: MFP models consist of FS-3140MFP, FS-3040MFP, FS-3140MFP+, FS-3040MFP+, FS-3640MFP and FS-3540MFP.
*2: No cable tie is currently bundled in the FD ASSY for the MFP models. It will be bundled from now on. So, please prepare
the cable tie separately and bundle it up if necessary when replacing the FD ASSY with the new motor or the motor with
the new one now. The affected models and parts are as follows:
- FD ASSY for FS-3140MFP and FS-3040MFP: 302LW94180 PARTS FD UNIT SP
- FD ASSY for FS-3140MFP+, FS-3040MFP+, FS-3640MFP and FS-3540MFP: 302MC94A010 PARTS FD UNIT SP
*3: The leaflet showing where to apply the cable tie (LEAFLET_FD_ASSY) is now bundled.
(-->)
Cable to be applied for the FS-6970DN and FD
ASSY for the A3 printer models (FS-6950DN and
FS-6970DN) after the change
The FD ASSY is shipped with the wire wrapped
up by the cable tie. When installing the part as
shown in the figure to the left, it is not necessary
to wrap it up with the neighboring wires.
KYOCERA MITA Europe B.V.
European Service & Development Center (ESDC)
