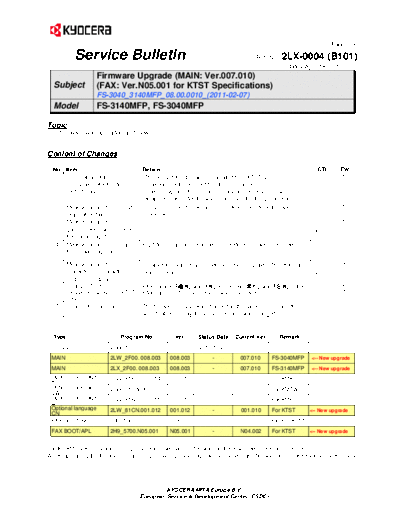

Image preview - the first page of the document
>> Download SB-2LX-0004-B101 documenatation <<
Text preview - extract from the document
(Page.1/3)
Service Bulletin Ref. No. 2LX-0004 (B101)
April 18, 2011
Firmware Upgrade (MAIN: Ver.007.010)
Subject (FAX: Ver.N05.001 for KTST Specifications)
FS-3040_3140MFP_08.00.0010_(2011-02-07)
Model FS-3140MFP, FS-3040MFP
Topic
The firmware was upgraded as follows.
Content of Changes
No. Item Details CTL FW
1 Elimination of the The encrypt function was eliminated from KTST specs. 523617 MAIN
encrypted FAX function *Operation of the encrypt function is disabled.
(KTST only) (The encrypt function is substantially unusable since it was
disabled on the FAX firmware side since the first production.)
2 533793 MAIN
Measure against the DDNS DDNS could not be registered in DHCP. Therefore, this was
TC-10-038
registration failure corrected/
3 Measure against the 533707 MAIN
----------
TP-10-015
garbled letters with a certain NP-Z10007
file containing PJL
4 Measure against the output 533705 MAIN
Big 5 font might not be printed. Therefore, this was corrected.
TP-090263,
failure with Big5 font KMTW2009
0902
5 Measure against the 533691 MAIN
Characters might drop out with a certain PCL data. Therefore, this
TP-10-257,
character dropout with a was corrected. #1127888
certain PCL data
6 Change of Chinese FAX number was and Index was in the MAIN
LAN
message display (For KTST FAX address. Therefore, these were corrected.
only)
520572 FAX
7 Change for common use The firmware version was changed to the same version as other
specifications. (Only the version number was changed.)
Type Program No. Ver. Status Date Current Ver. Remark
ENGINE 2LW_1000.003.003 003.003 2010/10/28 -
MAIN 2LW_2F00. 008.003 008.003 - 007.010 FS-3040MFP <-- New upgrade
MAIN 2LX_2F00. 008.003 008.003 - 007.010 FS-3140MFP <-- New upgrade
Optional language 2LW_81KR.001.014 001.014 - For KMKR
KR
Optional language 2LW_81TW.001.009 001.009 - - For KMTW
TW
Optional language 2LW_81BR.001.015 001.015 - - For KMBR
BR
Optional language 2LW_81CN.001.012 001.012 - 001.010 For KTST <-- New upgrade
CN
FAX BOOT/APL 2H9_5500.003.003 003.003 - - Except KTST
FAX BOOT/APL 2H9_5700.N05.001 N05.001 - N04.002 For KTST <-- New upgrade
For the KM sales companies, it is possible to download the firmware at the download center on the ESDC.net.
When upgrading the firmware or replacing a board, please upgrade each kind of the firmware to the latest version at the same
time.
KYOCERA MITA Europe B.V.
European Service & Development Center (ESDC)
(Page.2/3)
Service Bulletin Ref. No. 2LX-0004 (B101)
April 18, 2011
KMC's Classification Entire Stock Rework In-Field modification at next visit
In-Field modification by case No modification necessary
Field Measure: Please upgrade the firmware when the problem arises.
Serial Nos. of Affected Machine: From the available timing of the production in March, 2011.*
* The above is the plan at the present moment. Please note that there is a possibility of change after giving this information.
No. Item Details CTL FW
8 Measure against the lockup When calling a certain macro data, the system might be locked 533660 MAIN
TP-090317
with a certain macro data up while showing "Processing". Therefore, this was corrected. NP-Z09066
9 Printed command error Command might be printed as text. Therefore, this was 533657 MAIN
TP-10-040
corrected. NP-Z10012
10 Measure against the failure Upper part of the data on the back side was not printed when 533667 MAIN
TP-10-164,
when printing a certain file in printing a certain file in duplex. Therefore, this was corrected. NP-Z10059
duplex
11 Measure against the printing The letters might be partly overlapped when print job was 533648 MAIN
TP-10-184,
failure with a certain macro executed with a certain macro. Therefore, this was corrected. #1025908,
12 Print failure when printing a A certain file might not be printed with KPDL (AUTO). Therefore, 533639 MAIN
TP-090402
certain file with this was corrected.
KPDL(AUTO)
13 Print failure with the data ---------------------- 533632 MAIN
TP-090233
including a certain Prescribe
command
14 Measure against the Undesired lines might be printed when continuously printing 533629 MAIN
TP-090222,
undesired lines with a certain certain two files. Therefore, this was corrected. #741300
file
15 Measure against the If NW-FAX data resulting in authentication unmatched was sent, 533196 MAIN
Data/Receive LED failure the Data/Receive LED was kept lit. Therefore, this was corrected.
16 Measure against F000 error F000 error might appear with a certain PS data. Therefore, this 530732 MAIN
TP-10-232,
with a certain PS data was corrected. #1115873
17 Measure against the An error* might occur when directly printing a certain PDF data. 530727 MAIN
TP-10-037
problem when outputting a Therefore, this was corrected. #922548
certain PDF data * System error, Processing lock-up and F030 error, etc.
18 Measure against the print The print position might be shifted with a certain file. Therefore, 530724 MAIN
TP-090393
position shifting with a this was corrected. NP-Z09091
certain file
19 Problem when outputting a Print out of a certain PDF data may be interrupted, and it may be 530707 MAIN
TP-10-120
certain PDF data stopped at the state of waiting print. Therefore, this is corrected. NP-Z10033
20 Measure against the Text line might drop out with a certain file. Therefore, this was 530700 MAIN
TP-10-102
character dropout with a corrected.
certain file
21 TIF image failure when TIF image might be printed twice as large as the original size 530694 MAIN
TP-10-076
printing the report data when printing the report data containing TIF image. Therefore, KMA-D-1003-12
containing TIF image this was corrected.
22 Measure against the PS error PS error might appear and print job might be interrupted when 530688 MAIN
TP-10-061
when printing a certain data printing a certain data from UNIX. Therefore, this was corrected. KMA-D-1003-10
23 Prevention of the macro If emulation or resolution was changed from the operation panel, 530684 MAIN
TP-10-009
failure when changing macro might be disabled. Therefore, this was corrected. ASTA-12210-2
emulation from the operation
panel
24 Measure against the failure A part of image might not be printed when outputting a certain PS 530681 MAIN
TP-090381
with a certain PS data data. Therefore, this was corrected. ID_#409153
KYOCERA MITA Europe B.V.
European Service & Development Center (ESDC)
(Page.3/3)
Service Bulletin Ref. No. 2LX-0004 (B101)
April 18, 2011
No. Item Details CTL FW
25 Prevention of the data The data at the left edge might be dropped out and the character 530678 MAIN
TP-090331
dropping out failure when pitch might be broadened when outputting PS data. Therefore, ID_#404979
outputting the PS data this was corrected.
26 Image failure on backside The leading edge of image might be shifted or the image at the 530671 MAIN
TP-090215 #735300
image with a certain file center might be dropped out when printing the backside image of
the certain file in duplex mode. Therefore, this was corrected.
27 Measure against the Code39 Code39 barcode was not correctly printed (printed as text). 530667 MAIN
TP-10-198
barcode print failure with a Therefore, this was corrected. #1079465
certain file
28 Measure against the Umlaut The letters with Umlaut were partially not printed when printing 530664 MAIN
TP-090355,
font failure with PDF data PDF data using Adobe Reader/Acrobat (9.2.0) + PCL-XL driver #858502
(KX v5.0.1930). Therefore, this was corrected.
29 Measure against the garbled Letters partially garbled with a certain CAD file depending on the 530661 MAIN
TP-080104,
letters with a certain CAD file output size. Therefore, this was corrected. #560940
30 Measure against the image ---------------------- 448648 MAIN
TP-10-054
dropout failure NP-Z10018
31 Improvement of the output The printing speed was improved since it was pointed out that 533652 MAIN
TP-090303.
performance for a certain output of a certain file from the special application was slower NP-Z09063
data compared with the output from other models.
32 Measure against the white White spots might appear around the outline characters with a 530704 MAIN
TP-10-169
spots around the characters certain data. Therefore, this was corrected. ESDC_#045
with a certain file
