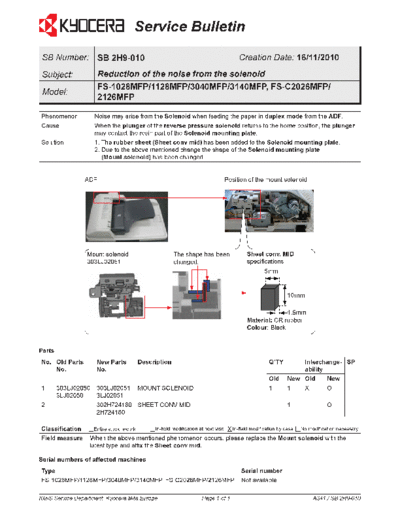

Image preview - the first page of the document
>> Download 2H9-010 documenatation <<
Text preview - extract from the document
Service Bulletin
SB Number: SB 2H9-010 Creation Date: 16/11/2010
Subject: Reduction of the noise from the solenoid
FS-1028MFP/1128MFP/3040MFP/3140MFP, FS-C2026MFP/
Model:
2126MFP
Phenomenon Noise may arise from the Solenoid when feeding the paper in duplex mode from the ADF.
Cause When the plunger of the reverse pressure solenoid returns to the home position, the plunger
may contact the resin part of the Solenoid mounting plate.
Solution 1. The rubber sheet (Sheet conv mid) has been added to the Solenoid mounting plate.
2. Due to the above mentioned change the shape of the Solenoid mounting plate
(Mount solenoid) has been changed.
ADF Position of the mount solenoid
Mount solenoid The shape has been Sheet conv. MID
303LJ02051 changed. specifications
5mm
10mm
1.5mm
Material: CR rubber
Colour: Black
Parts
No. Old Parts New Parts Description Q'TY Interchange- SP
No. No. ability
Old New Old New
1 303LJ02050 303LJ02051 MOUNT SOLENOID 1 1 X O -
3LJ02050 3LJ02051
2 ------------ 302H724180 SHEET CONV MID - 1 - O -
2H724180
Classification Entire stock rework X In-field modification by case No modification necessary
In-field modification at next visit
Field measure When the above mentioned phenomenon occurs, please replace the Mount solenoid with the
latest type and affix the Sheet conv mid.
Serial numbers of affected machines
Type Serial number
FS-1028MFP/1128MFP/3040MFP/3140MFP, FS-C2026MFP/2126MFP Not available
KMIS Service Department, Kyocera Mita Europe Page 1 of 1 A341 / SB 2H9-010
