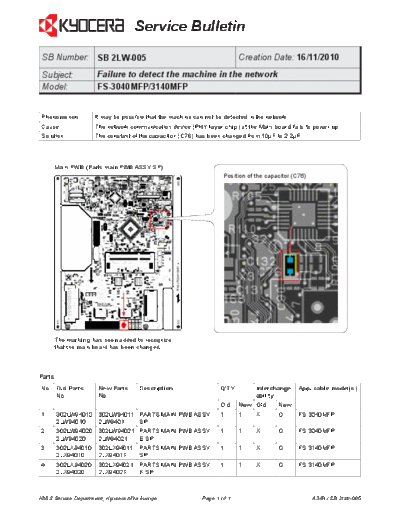

Service Bulletin
SB Number: SB 2LW-005 Creation Date: 16/11/2010
Subject: Failure to detect the machine in the network
Model: FS-3040MFP/3140MFP
Phenomenon It may be possible that the machine can not be detected in the network.
Cause The network communication device (PHY layer chip) at the Main board fails to power-up.
Solution The constant of the capacitor (C76) has been changed from 10F to 2.2F.
Main PWB (Parts main PWB ASSY SP)
Position of the capacitor (C76)
The marking has been added to recognize
that the main board has been changed.
Parts
No. Old Parts New Parts Description Q'TY Interchange- Applicable model(s)
No. No. ability
Old New Old New
1 302LW94010 302LW94011 PARTS MAIN PWB ASSY 1 1 X O FS-3040MFP
2LW94010 2LW9401 SP
2 302LW94020 302LW94021 PARTS MAIN PWB ASSY 1 1 X O FS-3040MFP
2LW94020 2LW94021 E SP
3 302LX94010 302LX94011 PARTS MAIN PWB ASSY 1 1 X O FS-3140MFP
2LX94010 2LX94011 SP
4 302LX94020 302LX94021 PARTS MAIN PWB ASSY 1 1 X O FS-3140MFP
2LX94020 2LX94021 E SP
KMIS Service Department, Kyocera Mita Europe Page of A348 / SB 2LW-005
