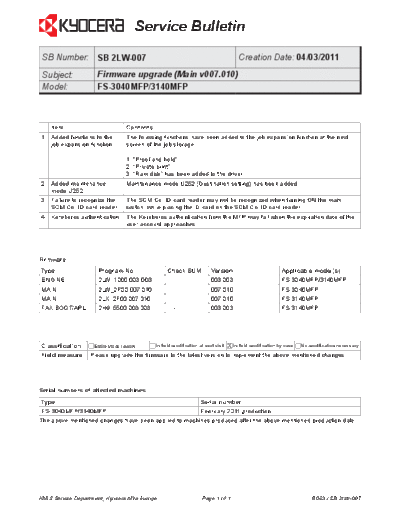

Image preview - the first page of the document



>> Download 2LW-007 documenatation <<

Text preview - extract from the document

                                      Service Bulletin
 SB Number: SB 2LW-007                                                             Creation Date: 04/03/2011
 Subject:            Firmware upgrade (Main v007.010)
 Model:              FS-3040MFP/3140MFP



    Item                          Contents
1   Added functions to the        The following functions have been added to the job expansion function at the next
    job expansion function.       screen of the job storage:

                                  1. "Proof and hold"
                                  2. "Private print"
                                  3. "Ram disk" has been added to the driver.
2   Added maintenance             Maintenance mode U252 (Destination setting) has been added.
    mode U252
3   Failure to recognize the      The SCM Co. ID card reader may not be recognized when turning ON the main
    SCM Co. ID card reader        switch, while placing the ID card on the SCM Co. ID card reader.
4   Kereberos authentication      The Kereberos authentication from the MFP may fail when the expiration date of the
                                  user account approaches.




Firmware
Type                  Program No.                  Check SUM             Version               Applicable model(s)
ENGINE                2LW_1000.003.003             ----                  003.003               FS-3040MFP/3140MFP
MAIN                  2LW_2F00.007.010             ----                  007.010               FS-3040MFP
MAIN                  2LX_2F00.007.010             ----                  007.010               FS-3140MFP
FAX BOOT/APL          2H9_5500.003.003             ----                  003.003               FS-3140MFP




Classification      Entire stock rework                              X In-field modification by case No modification necessary
                                             In-field modification at next visit
Field measure     Please upgrade the firmware to the latest version to implement the above mentioned changes.




Serial numbers of affected machines
Type                                                                Serial number
 FS-3040MFP/3140MFP                                   February 2011 production.
The above mentioned changes have been applied to machines produced after the above mentioned production date.




KMIS Service Department, Kyocera Mita Europe                        Page  of                               B063 / SB 2LW-007
