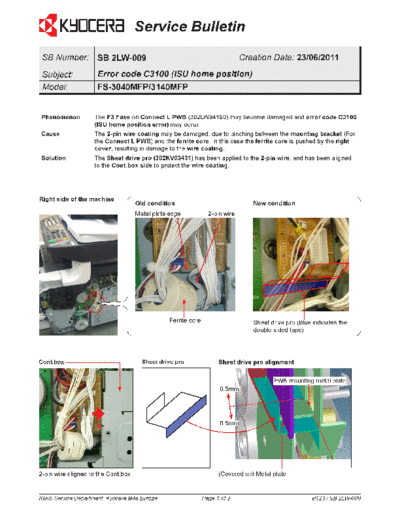

Image preview - the first page of the document
>> Download 2LW-009 Error C3100 documenatation <<
Text preview - extract from the document
Service Bulletin
SB Number: SB 2LW-009 Creation Date: 23/06/2011
Subject: Error code C3100 (ISU home position)
Model: FS-3040MFP/3140MFP
Phenomenon The F3 Fuse on Connect L PWB (302LW94190) may become damaged and error code C3100
(ISU home position error) may occur.
Cause The 2-pin wire coating may be damaged, due to pinching between the mounting bracket (For
the Connect L PWB) and the ferrite core. In this case the ferrite core is pushed by the right
cover, resulting in damage to the wire coating.
Solution The Sheet drive pro (302KV03431) has been applied to the 2-pin wire, and has been aligned
to the Cont.box side to protect the wire coating.
Right side of the machine
Old condition New condition
Metal plate edge 2-pin wire
Ferrite core Sheet drive pro (Blue indicates the
double sided tape)
Cont.box Sheet drive pro Sheet drive pro alignment
PWB mounting metal plate
0.5mm
0.5mm
2-pin wire aligned to the Cont.box (Covered up) Metal plate
KMIS Service Department, Kyocera Mita Europe Page 1 of 2 B123 / SB 2LW-009
Service Bulletin
Parts
No. Old Parts New Parts Description Q'TY Interchange-
No. No. ability
Old New Old New
1 -------------- 302KV03431 SHEET DRIVE PRO - 1 - O
2KV03431
2 -------------- 302LW46020 CONN.CORD ASSY S03614 (2-pin wire set) - 1 - -
2LW46020
Classification Entire stock rework X In-field modification by case No modification necessary
In-field modification at next visit
Field measure 1. Please align the 2-pin wire to the Cont.box side when fitting the right cover, so that contact
with the metal plate edge is avoided.
2. When error code C3100 occurs (F3 Fuse damage and connection is not possible), please
perform the following steps:
2.1. Replace the Connect L PWB (302LW94190).
2.2. If the 2-pin wire is damaged, replace it with the latest type. (Conn.cord assy S03614).
2.3. Add the Sheet drive pro (302KV03431) to isolate the 2-pin wire from the
metal plate edge.
2.4. Align the 2-pin wire to the Cont.box side.
Serial numbers of affected machines
Type Serial number
FS-3040MFP/3140MFP Not available
Checking if the F3 fuse is damaged
Check the connection between Pin 1 of the YC2 connector and Pin 9 of the YC7 connector. If the F3 fuse has
been damaged and there is no connection, replace the Connect L PWB with the latest type. Please note that it is
not possible to visually confirm if F3 fuse has been damaged.
Left side of the machine
Connect L PWB
YC7
Pin 9
YC2
Pin 1 (Right side)
KMIS Service Department, Kyocera Mita Europe Page 2 of 2 B123 / SB 2LW-009
