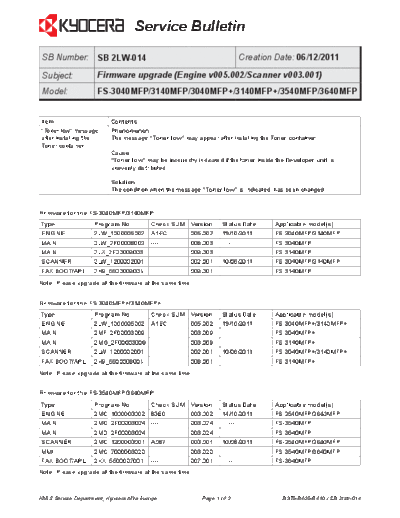

Image preview - the first page of the document



>> Download 2LW-014 documenatation <<

Text preview - extract from the document

                                   Service Bulletin
 SB Number: SB 2LW-014                                                    Creation Date: 06/12/2011

 Subject:            Firmware upgrade (Engine v005.002/Scanner v003.001)
 Model:              FS-3040MFP/3140MFP/3040MFP+/3140MFP+/3540MFP/3640MFP


Item                      Contents
"Toner low" message       Phenomenon
after installing the      The message "Toner low" may appear after installing the Toner container.
Toner container.
                          Cause
                          "Toner low" may be incorrectly indicated if the toner inside the Developer unit is
                          unevenly distributed.

                          Solution
                          The condition when the message "Toner low" is indicated, has been changed.


Firmware for the FS-3040MFP/3140MFP
Type                Program No.          Check SUM Version        Status Date         Applicable model(s)
ENGINE              2LW_1000005002       A1EC          005.002    19/10/2011          FS-3040MFP/3140MFP
MAIN                2LW_2F00008003       ----          008.003    ----------          FS-3040MFP
MAIN                2LX_2F00008003       ----          008.003    ----------          FS-3140MFP
SCANNER             2LW_1200002001       ----          002.001    10/06/2011          FS-3040MFP/3140MFP
FAX BOOT/APL        2H9_5500008001       ----          008.001    ----------          FS-3140MFP
Note: Please upgrade all the firmware at the same time.


Firmware for the FS-3040MFP+/3140MFP+
Type                Program No.          Check SUM Version        Status Date         Applicable model(s)
ENGINE              2LW_1000005002       A1EC          005.002    19/10/2011          FS-3040MFP+/3140MFP+
MAIN                2MF_2F00003009       ----          003.009    ----------          FS-3040MFP+
MAIN                2MG_2F00003009 ----                003.009    ----------          FS-3140MFP+
SCANNER             2LW_1200002001       ----          002.001    10/06/2011          FS-3040MFP+/3140MFP+
FAX BOOT/APL        2H9_5500008001       ----          008.001    ----------          FS-3140MFP+
Note: Please upgrade all the firmware at the same time.


Firmware for the FS-3540MFP/3640MFP
Type                Program No.          Check SUM Version        Status Date         Applicable model(s)
ENGINE              2MC_1000003002 83E0                003.002    14/10/2011          FS-3540MFP/3640MFP
MAIN                2MC_2F00003024 ----                003.024    ----------          FS-3540MFP
MAIN                2MD_2F00003024 ----                003.024    ----------          FS-3640MFP
SCANNER             2MC_1200003001 A087                003.001    10/08/2011          FS-3540MFP/3640MFP
MMI                 2MC_7000003020 ----                003.020    ----------          FS-3540MFP/3640MFP
FAX BOOT/APL        2KX_5500007001       ----          007.001    ----------          FS-3640MFP
Note: Please upgrade all the firmware at the same time.



KMIS Service Department, Kyocera Mita Europe               Page 1 of 2                   B379-B409-B410 / SB 2LW-014
                                      Service Bulletin

Classification      Entire stock rework                        X In-field modification by case No modification necessary
                                           In-field modification at next visit
Field measure     When the above mentioned phenomena occur, please upgrade the firmware to the latest
                  version.



Serial numbers of affected machines
Type                                                  Applicable firmware         Serial number
FS-3040MFP/3140MFP/3040MFP+/3140MFP+                  Engine                      November 2011 production.
 FS-350MFP/3640MFP                            Engine                        October 2011 production.
The above mentioned changes have been applied to machines produced after the above mentioned production date.




KMIS Service Department, Kyocera Mita Europe                      Page 2 of 2              B379-B409-B410 / SB 2LW-014
