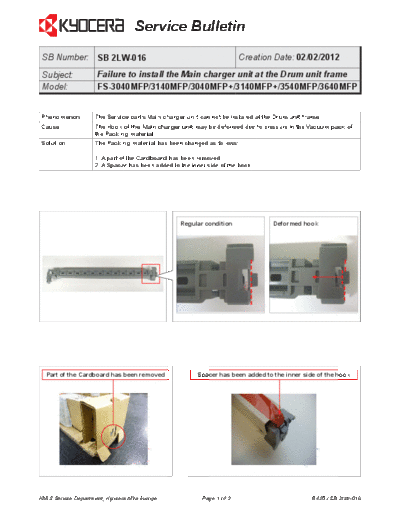

Image preview - the first page of the document



>> Download 2LW-016 documenatation <<

Text preview - extract from the document

                                   Service Bulletin
 SB Number: SB 2LW-016                                                  Creation Date: 02/02/2012
 Subject:            Failure to install the Main charger unit at the Drum unit frame
 Model:              FS-3040MFP/3140MFP/3040MFP+/3140MFP+/3540MFP/3640MFP


Phenomenon          The Service parts Main charger unit can not be installed at the Drum unit frame.
Cause               The Hook of the Main charger unit may be deformed due to pressure in the Vacuum pack of
                    the Packing material.
Solution            The Packing material has been changed as follows:

                    1. A part of the Cardboard has been removed.
                    2. A Spacer has been added to the inner side of the hook




                                                  Regular condition                Deformed hook




  Part of the Cardboard has been removed                Spacer has been added to the inner side of the hook




KMIS Service Department, Kyocera Mita Europe              Page 1 of 2                           B425 / SB 2LW-016
                                       Service Bulletin

Classification       Entire stock rework                      X In-field modification by case No modification necessary
                                                In-field modification at next visit
Field measure     When the above mentioned phenomenon occurs, please replace the Main charger unit with the
                  latest type.



Parts
No. Old Parts         New Parts            Description                                     Q'TY          Interchange-
    No.               No.                                                                                ability
                                                                                           Old    New Old        New
1       302J093092    302J093093           MC-320                                          1      1      X       O
        2J093092      2J093093




KMIS Service Department, Kyocera Mita Europe                           Page 2 of 2                    B425 / SB 2LW-016
