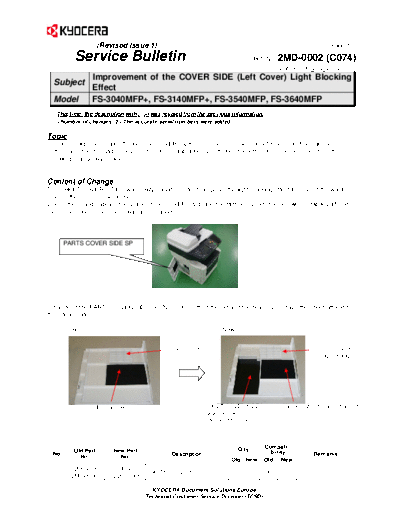

Image preview - the first page of the document
>> Download SB-2MD-0002-C074_1 documenatation <<
Text preview - extract from the document
(Revised Issue 1) (Page.1/2)
Service Bulletin Ref. No.2MD-0002 (C074)
July 12, 2012
Improvement of the COVER SIDE (Left Cover) Light Blocking
Subject
Effect
Model FS-3040MFP+, FS-3140MFP+, FS-3540MFP, FS-3640MFP
This time, the description with (-->) was revised from the previous information.
The accurate serial numbers were added.
Topic
If direct sunlight permeates through the COVER SIDE (Left Cover), sensor misdetection might be caused.
In this case, the message [Close Left Cover] is displayed even though the left cover is closed. Therefore, the
following change was made.
Content of Change
The SHEET COVER SIDE L was newly added in order to improve the light blocking effect to prevent the waste
toner bottle sensor misdetection.
Due to the change above, the shape of the COVER SIDE and the Himelon sheet (the non-woven fabrics affixed on
the interior side of the cover) was also changed.
PARTS COVER SIDE SP
[Change of the PARTS COVER SIDE SP (No.1)] (Both of the old and the new covers have the sheet affixed to
the interior side.)
(Old) (New)
COVER SIDE COVER SIDE
shape changed
Himelon sheet SHEET COVER SIDE L Himelon sheet shape changed
Newly added
(PET FILM, Black t=0.25)
Com pati-
Old Part New Part Q'ty bi lity
No. No. No. Description Remarks
Old New Old New
302MC94080 302MC94081
1 PARTS COVER SIDE SP 1 1 X O
2MC94080 2MC94081
KYOCERA Document Solutions Europe
Technical Customer Service Division (TCSD)
(Revised Issue 1) (Page.2/2)
Service Bulletin Ref. No.2MD-0002 (C074)
July 12, 2012
KMC's Classification Entire Stock Rework In-Field modification at next visit
In-Field modification by case No modification necessary
Field Measure: Please use the new part when the phenomenon described above arises.
Serial Nos. of the Affected Machines: (-->) Please refer to the tables below.
(-->) Serial Nos. of the Affected Machines
FS-3540MFP
KDA KDA 220VI KDE UTAX Olivetti KDAU
1102MC2US0 1102MC4US0 1102MC3NL0 1102MC3UT0 1102MC3LV0 1102MC3AS0
NNB2302999 NPP2600076 NND2501653 NNY2500298 NQD2300123 NNC2400033
FS-3640MFP
KDA KDA (GSA) KDA 220VI KDE UTAX Olivetti KDAU
1102MD2US0 1102MD2US1 1102MD4US0 1102MD3NL0 1102MD3UT0 1102MD3LV0 1102MD3AS0
NNE2304373 NRN Next NPQ Next NNG2503881 NNZ2301693 NQE2300157 NNF Next
FS-3040MFP+
KDA KDA 220VI KDE UTAX Olivetti KDAU KDSG
1102MF2US0 1102MF4US0 1102MF3NL0 1102MF3UT0 1102MF3LV0 1102MF3AS0 1102MF3SG0
NS7
NNJ2301230 NPR2300258 NNL2302020 NP112300559 NQF2300121 NNK Next
1st production
KDTH KDTW KDKR Philcopy
1102MF3TH0 1102MFTTW0 1102MF3KR0 1102MF4PH0
NS5 NS2 NV8
NT72300006
1st production 1st production 1st production
FS-3140MFP+
KDA KDA 220VI KDE UTAX Olivetti KDAU KDSG
1102MG2US0 1102MG4US0 1102MG3NL0 1102MG3UT0 1102MG3LV0 1102MG3AS0 1102MG3SG0
NS8
NNM2303264 NPS Next NNP2307222 NP22302916 NQG2300261 NNN2300112
1st production
KDTH KDID KDTW KDCN KDKR Philcopy
1102MG3TH0 1102MG3ND0 1102MGTTW0 1102MG3KS0 1102MG3KR0 1102MG4PH0
NS3 NUX
NS6 Next NS4 Next NT82300008 NV92500001
1st production 1st production
KYOCERA Document Solutions Europe
Technical Customer Service Division (TCSD)
