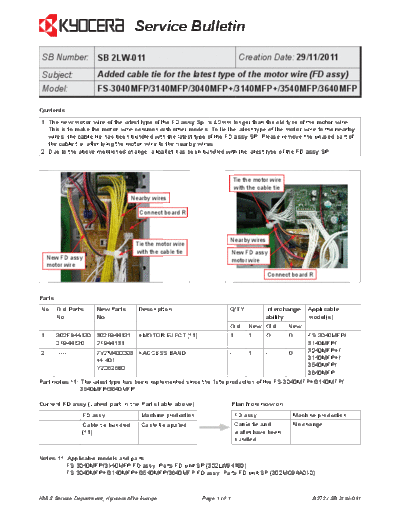

Service Bulletin
SB Number: SB 2LW-011 Creation Date: 29/11/2011
Subject: Added cable tie for the latest type of the motor wire (FD assy)
Model: FS-3040MFP/3140MFP/3040MFP+/3140MFP+/3540MFP/3640MFP
Contents
1. The new motor wire of the latest type of the FD assy Sp, is 40mm longer than the old type of the motor wire.
This is to make the motor wire common with other models. To tie the latest type of the motor wire to the nearby
wires, the cable tie has been bundled with the latest type of the FD assy SP. Please remove the unused part of
the cable tie, after tying the motor wire to the nearby wires.
2. Due to the above mentioned change, a leaflet has been bundled with the latest type of the FD assy SP.
Tie the motor wire
with the cable tie
Nearby wires
Connect board R
Nearby wires
Tie the motor wire
with the cable tie New FD assy
New FD assy motor wire
motor wire
Connect board R
Parts
No. Old Parts New Parts Description Q'TY Interchange- Applicable
No. No. ability model(s)
Old New Old New
1 302F944130 302F944131 +MOTOR EJECT (*1) 1 1 O O
FS-3040MFP/
2F944130 2F944131 3140MFP/
2 ---------- 7YZM420003 +ACCESS BAND - 1 - O 3040MFP+/
++H01 3140MFP+/
YZ052580 3540MFP/
3640MFP
Part notes *1: The latest type has been implemented since the 1ste production of the FS-3040MFP+/3140MFP/
3540MFP/3640MFP
Current FD assy (Latest part in the Parts table above) Plan from now on
FD assy Machine production FD assy Machine production
Cable tie bundled Cable tie applied Cable tie and No change
(*1) leaflet have been
bundled
Notes 1*: Applicable models and parts
FS-3040MFP/3140MFP FD assy: Parts FD unit SP (302LW94180)
FS-3040MFP+/3140MFP+/3540MFP/3640MFP FD assy: Parts FD unit SP (302MC94A010)
KMIS Service Department, Kyocera Mita Europe Page 1 of 1 B272 / SB 2LW-011
