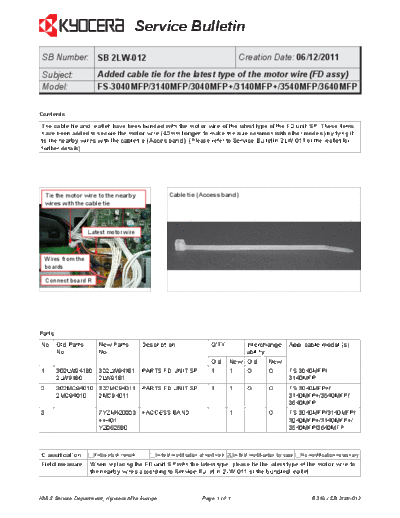

Image preview - the first page of the document



>> Download 2LW-012 documenatation <<

Text preview - extract from the document

                                         Service Bulletin
 SB Number: SB 2LW-012                                                                     Creation Date: 06/12/2011
 Subject:               Added cable tie for the latest type of the motor wire (FD assy)
 Model:                 FS-3040MFP/3140MFP/3040MFP+/3140MFP+/3540MFP/3640MFP


Contents
The cable tie and leaflet have been bundled with the motor wire of the latest type of the FD unit SP. These items
have been added to secure the motor wire (40mm longer to make the wire common with other models) by tying it
to the nearby wires with the cable tie (Acces band). (Please refer to Service Bulletin 2LW-011 or the leaflet for
further details)




    Tie the motor wire to the nearby                    Cable tie (Access band)
    wires with the cable tie



                     Latest motor wire



  Wires from the
  boards

    Connect board R




Parts
No. Old Parts            New Parts           Description                     Q'TY            Interchange- Applicable model (s)
    No.                  No.                                                                 ability
                                                                             Old       New Old      New
1       302LW94180       302LW94181          PARTS FD UNIT SP                1         1     O      O     FS-3040MFP/
        2LW9180          2LW9181                                                                          3140MFP
2       302MC94010 302MC94011                PARTS FD UNIT SP                1         1     O      O     FS-3040MFP+/
        2MC94010   2MC94011                                                                               3140MFP+/3540MFP/
                                                                                                          3640MFP
3       ----------       7YZM420003 +ACCESS BAND                             -         1     -      O     FS-3040MFP/3140MFP/
                         ++H01                                                                            3040MFP+/3140MFP+/
                         YZ052580                                                                         3540MFP/3640MFP



Classification         Entire stock rework                             X In-field modification by case No modification necessary
                                                 In-field modification at next visit
Field measure        When replacing the FD unit SP with the latest type, please tie the latest type of the motor wire to
                     the nearby wires according to Service Bulletin 2LW-011 or the bundled leaflet.



KMIS Service Department, Kyocera Mita Europe                            Page 1 of 1                               B316 / SB 2LW-012
