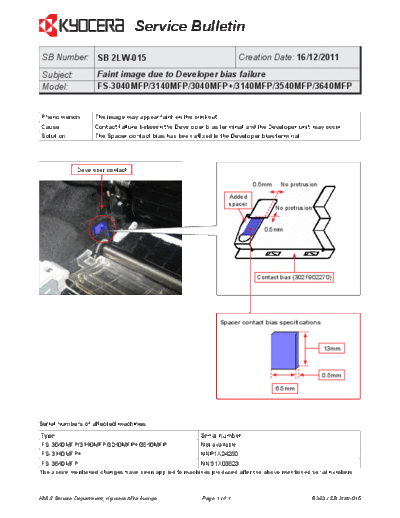

Image preview - the first page of the document
>> Download 2LW-015 documenatation <<
Text preview - extract from the document
Service Bulletin
SB Number: SB 2LW-015 Creation Date: 16/12/2011
Subject: Faint image due to Developer bias failure
Model: FS-3040MFP/3140MFP/3040MFP+/3140MFP/3540MFP/3640MFP
Phenomenon The image may appear faint on the print-out.
Cause Contact failure between the Developer bias terminal and the Developer unit may occur.
Solution The Spacer contact bias has been affixed to the Developer bias terminal.
Developer contact
0.5mm No protrusion
Added
spacer
No protrusion
0.5mm
Contact bias (302F902270)
Spacer contact bias specifications
13mm
0.5mm
6.5mm
Serial numbers of affected machines
Type Serial number
FS-3040MFP/3140MFP/3040MFP+/3540MFP Not available
FS-3140MFP+ NNP1X04250
FS-3640MFP NNG1X03523
The above mentioned changes have been applied to machines produced after the above mentioned serial numbers.
KMIS Service Department, Kyocera Mita Europe Page 1 of 1 B363 / SB 2LW-015
