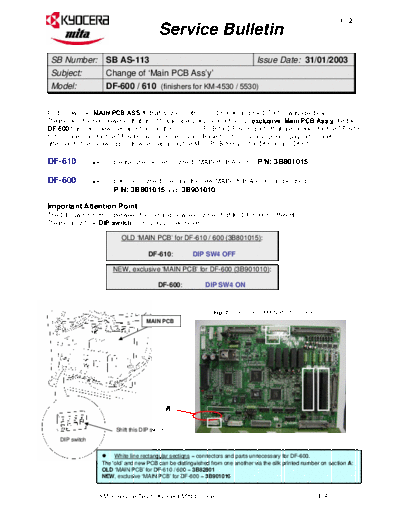

Image preview - the first page of the document



>> Download AS-113 documenatation <<

Text preview - extract from the document

                                                                                                                      1/2
                                             Service Bulletin
 SB Number: SB AS-113                                                               Issue Date: 31/01/2003
 Subject:   Change of `Main PCB Ass'y'
 Model:                DF-600 / 610 (finishers for KM-4530 / 5530)


Up till now, the `MAIN PCB ASS'Y' that is used both in the DF-600 and the DF-610, was identical.
Please be informed however that as of September 2002 production, an exclusive `Main PCB Ass'y' for the
DF-600 has been newly established (on this exclusive PCB for DF-600, parts that are needed for the DF-610,
but unnecessary for the DF-600 have been removed). Based on this change, please pay extra careful
attention to the following points when replacing the Main PCB Ass'y in the Df-600 and Df-610.

DF-610           =>       please use the `old' (current) `MAIN PCB ASS'Y'. P/N: 3B801015

DF-600           =>       both old (current one) and the new `MAIN PCB ASS'Y' can be used !
                          P/N: 3B801015 and 3B901010

Important Attention Point
The DIP switch setting between the old and new, exclusive PCB for DF-600 is different.
Please adjust the DIP switch accordingly! See below.

                             OLD `MAIN PCB' for DF-610 / 600 (3B801015):

                                         DF-610:          DIP SW4 OFF

                          NEW, exclusive `MAIN PCB' for DF-600 (3B901010):

                                             DF-600:           DIP SW4 ON



                                                                  Fig. 1. `old', current `MAIN PCB' for DF-610/600.
                                        MAIN PCB




                                                A

                           Shift this DIP switch.
    DIP switch


                           White line rectangular sections = connectors and parts unnecessary for DF-600.
                      The `old' and new PCB can be distinguished from one another via the silk printed number on section A:
                      OLD `MAIN PCB' for DF-610 / 600 = 3B82801
                      NEW, exclusive `MAIN PCB' for DF-600 = 3B901010


                  KMIS Service Team, Kyocera Mita Europe                                            5613 / SB AS-113
                                     Service Bulletin                              2/2




Parts Table

       Part No.      Part No.                                Q'ty      Interchange-
 No.                                        Description
        OLD           NEW                                  old-new         ability
  1    3B801015     3B901010    MAIN PCB ASS'Y             1     1      O        O




                  KMIS Service Team, Kyocera Mita Europe             5613 / SB AS-113
