                                                          UPDATE 10/12/04: Parts info added on page 6



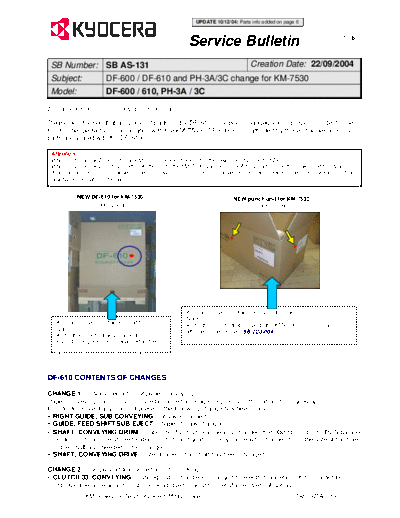

                                                       Service Bulletin                                              1/6



 SB Number: SB AS-131                        Creation Date: 22/09/2004
 Subject:   DF-600 / DF-610 and PH-3A/3C change for KM-7530
 Model:                DF-600 / 610, PH-3A / 3C

DF-600: KM-4530 / DF-610: KM-4530/5530/6330/7530

Please be informed that a number of parts on the DF-610 have been changed and improved in order to use
this finisher perfectly in combination with the KM-7530. (DF-600 is also affected by these changes as some
parts are shared with the DF-610.)

 Attention:
 When installing the DF-610 to the KM-7530, please check if it is the new / slightly modified DF-610.
 When installing the punch unit (PH-3A/PH-3C) to the KM-7530, please check if the punch unit is the new / modified type..
 A distinction can be made between old and new type by a marking seal, which has been added to the outer packaging of the
 new types.(see photos below.)


           NEW DF-610 for KM-7530                                        NEW punch unit for KM-7530
                marking seal                                                   marking seal




                                                      A round red seal is attached next to the Punch unit's name.
                                                      Note:
   A round red seal is attached next to DF-610.
                                                      As for the DF-610 that supports the KM-6330, a green seal is
   Note:
                                                      attached instead. (see SB 2CJ-004)
   As for the DF-610 that supports the
   KM-6330, a green seal is attached instead.




DF-610 CONTENTS OF CHANGES

CHANGE 1.: Noise reduction at paper conveying
Paper conveying noise may increase because the usage frequency of the siding drum goes up.
In order to prevent any noise, if present, the following change has been done.
