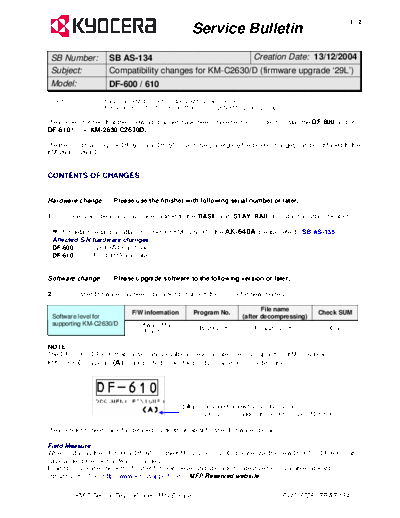

Image preview - the first page of the document



>> Download AS-134 documenatation <<

Text preview - extract from the document

                                                                                                                1/2
                                                    Service Bulletin
 SB Number:            SB AS-134                          Creation Date: 13/12/2004
 Subject:              Compatibility changes for KM-C2630/D (firmware upgrade `29L')
 Model:                DF-600 / 610
DF-600:              finisher for KM-4530, FS-C8026N, KM-C2630/C2630D
DF-610:              finisher for KM-4530/5530/6330/7530, FS-C8026N,KM-C2630/C2630D

Please be informed that the following changes have been implemented in order to install the DF-600 and/or
DF-610 to the KM-2630/C2630D.

Please mind that only the DF-600 and DF-610 that have undergone the below changes can be installed to the
KM-2630/C2630D.


CONTENTS OF CHANGES


Hardware change:         Please use the finisher with following serial number or later.

1.        Holes and bearings have been added to the `BASE' and `STAY, RAIL' to install the attachment kit.

     for details regarding attachment kit for KM-C2630/D, the AK-640A, please refer to SB AS-135.
 Affected S/N hardware changes:
 DF-600:         G3006540 and later
 DF-610:         F3010213 and later


Software change:         Please upgrade software to the following version or later.

2.        Finisher firmware has been upgraded to support the control for new models.

                                                                              File name
                               F/W information       Program No.                                  Check SUM
 Software level for                                                    (after decompressing)
 supporting KM-C2630/D          Software Main
                                                      3B829528K            P3B82952.8K0               9D58
                                  (Finisher)

NOTE:
The DF-610 or DF-600 that contain above software level or later, hereby supporting KM-C2630 and
KM-C2630D, have an `(A)' mark printed under the product name on the outer case.




                                                 ( A ) mark added below the product name.
                                                 (This marking is also added to the outer case of DF-600.)

Please refer to next page for detailed contents of latest finisher firmware upgrade.

Field Measure
When installing the DF-600 or DF-610 to the KM-C2630/C2630D, please use the new DF-610 / DF-600 that
have undergone the hardware changes.
In addition, please check the finisher firmware level and upgrade to latest version available (at least
`3B829528K'!) from http://www.kmissupport.com / MFP Reserved website.


           KMIS Service Team, Kyocera Mita Europe                                      6440, 6728 / SB AS-134
                                                             Service Bulletin                                             2/2




 Affected Machine Serial Numbers:
 Hardware changes        DF-610:               F3010213 and later
                         DF-600:               G3006540 and later
 Software change:        DF-610:               F3020378 and later
                         DF-600:               G3011763 and later




DF-600 / 610 Finisher firmware upgrade                           3B829528K                   3B829529L


CONTENTS OF CHANGES

  Item                                     Remarks
1 Measure for slipping noise of            When a large size paper (A3/11"x17") is fed through the finisher middle tray, the
  finisher middle tray paper entry         paper might be unevenly pulled due to the difference of peripheral speed between
  pulley.                                  finisher middle tray paper entry roller and eject decurler roller of main machine.
  (This phenomenon may occur               As a result, the paper may slip on the finisher middle tray paper entry roller and a
  when installing the DF-610 /             noise may occur.
  DF-600 to the KM-C2630/C2630D            Change
  or FS-C8026N)                            Software has been changed to change the timing that the paper passes the finisher
                                           paper entry sensor by adjusting the stop timing of the finisher paper entry motor.
   It is necessary to upgrade copier       (This operation change is made only for the large size paper (A3/11"x17") feeding
   firmware to the following version or    through finisher middle tray.)
   later:
   KM-C2630/C2630D
   Engine Ver.163-0

2 Changing the punch timing for            The punch position adjustment range is
